Description

Product Description

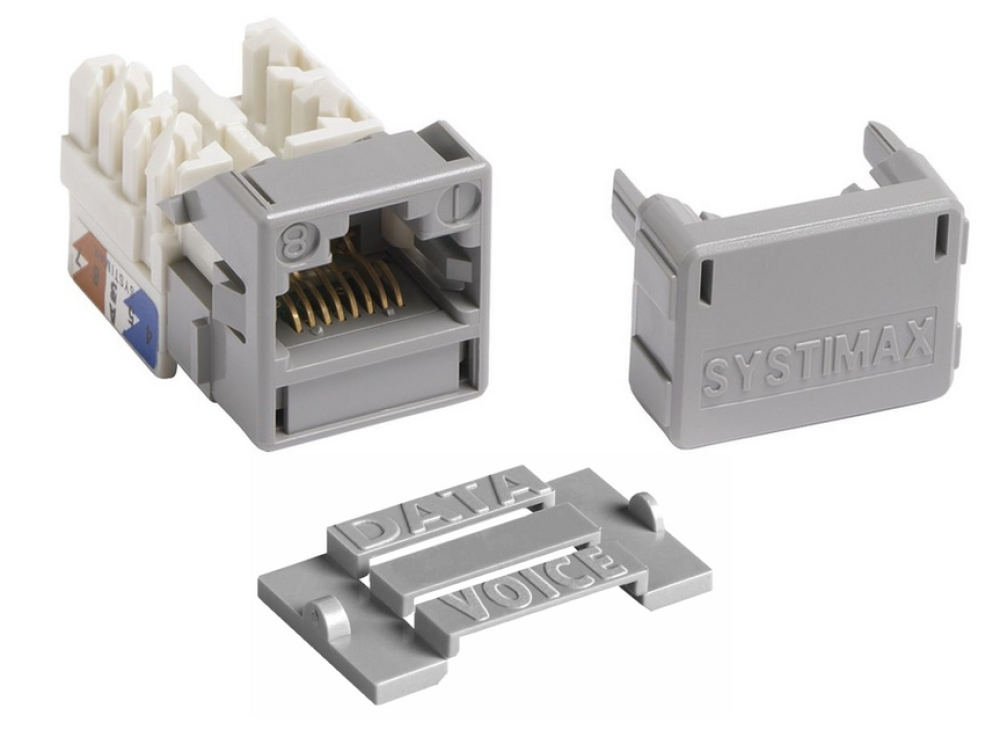

The CommScope SYSTIMAX® GigaSPEED XL® MGS400 Category 6 Modular Jack (Gray) is a high-performance unshielded RJ45 keystone jack designed for reliable and efficient structured cabling installations. Engineered to meet ANSI/TIA Category 6 and ISO/IEC Class E standards, it delivers excellent network performance for voice, data, and Power over Ethernet (PoE) applications.

Built with premium gold-plated contacts and durable PC+ABS housing, the MGS400 jack supports both solid and stranded conductors and is compatible with standard M Series faceplates and panels. It fully supports IEEE 802.3bt Type 4 (90W) PoE, ensuring safe power delivery over LAN cabling while maintaining long-term durability with over 3,000 plug-to-jack mating cycles. Its compact design, robust construction, and industry certifications make it an ideal choice for enterprise, commercial, and data center networking environments.

Product Specifications

Brand: Commscope

Model Number: 700206733

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 10

Listed date: 17th Jun, 2026

Specifications

General

SpecificationDetails
Product TypeModular Jack
BrandGigaSPEED XL®
SeriesMGS400
PortfolioSYSTIMAX®
ANSI/TIA CategoryCategory 6
Cable TypeUnshielded
ColorGray
Conductor TypeSolid & Stranded
Wiring StandardsT568A, T568B
Termination TypeIDC
Termination Tool110 Punchdown Tool
Minimum Punchdown Cycles20 Times
MountingM Series Faceplates and Panels
Dust CoverNone
Transmission StandardsANSI/TIA-568.2-D, ISO/IEC 11801 Class E
Regional AvailabilityAsia, Australia/New Zealand, EMEA, Latin America, North America

Dimensions

SpecificationDetails
Height19.2 mm
Width21.1 mm
Depth30.2 mm
Maximum Cable Diameter5.8 mm
Maximum Insulated Conductor Diameter1.45 mm
Contact Plating Thickness1.27 μm
Compatible Solid Conductor Gauge22–24 AWG, 21 AWG (CommScope GigaREACH only)
Compatible Stranded Conductor Gauge22–24 AWG

Electrical Specifications

SpecificationDetails
Contact Resistance (Max.)20 mΩ
Current Rating1.5 A @ 20°C
Dielectric Withstand Voltage1000 Vac @ 60 Hz
Insulation Resistance (Min.)500 MΩ
Safety Voltage Rating150 Vac
Remote PoweringIEEE 802.3bt Type 4 PoE Support
PoE DurabilitySupports 90W PoE applications with over 3,000 mating cycles

Material Specifications

SpecificationDetails
Housing MaterialPC + ABS
Contact Base MaterialCopper-Nickel Alloy
Contact Plating MaterialGold
IDC Termination MaterialCopper-Aluminum Alloy
Termination Contact PlatingTin

Mechanical Specifications

SpecificationDetails
Plug Retention Force100 N (IEC 60603-7 Compliant)
Mating CyclesIEC 60603-7 Series Compliant

Environmental Specifications

SpecificationDetails
Operating Temperature-10°C to +60°C
Storage Temperature-40°C to +70°C
Relative HumidityUp to 95% (Non-Condensing)
Flammability RatingUL 94 V-0
Safety StandardcULus

Packaging

SpecificationDetails
Packaging Quantity1
Packaging TypeBag

Compliance & Certifications

StandardStatus
RoHSCompliant
UK RoHSCompliant
REACH SVHCCompliant
China RoHSBelow Maximum Concentration Value
ISO 9001:2015Manufactured under a Certified Quality Management System

Key Features

  • Category 6 unshielded modular jack
  • Supports T568A and T568B wiring schemes
  • Gold-plated contacts for reliable connectivity
  • Compatible with solid and stranded conductors
  • Supports IEEE 802.3bt Type 4 (90W) PoE
  • Over 3,000 plug-to-jack mating cycles
  • Compact keystone design for M Series faceplates and panels
  • UL 94 V-0 flame-retardant housing
  • RoHS, REACH, and ISO 9001:2015 compliant
  • Suitable for enterprise, commercial, and data center network installations.
