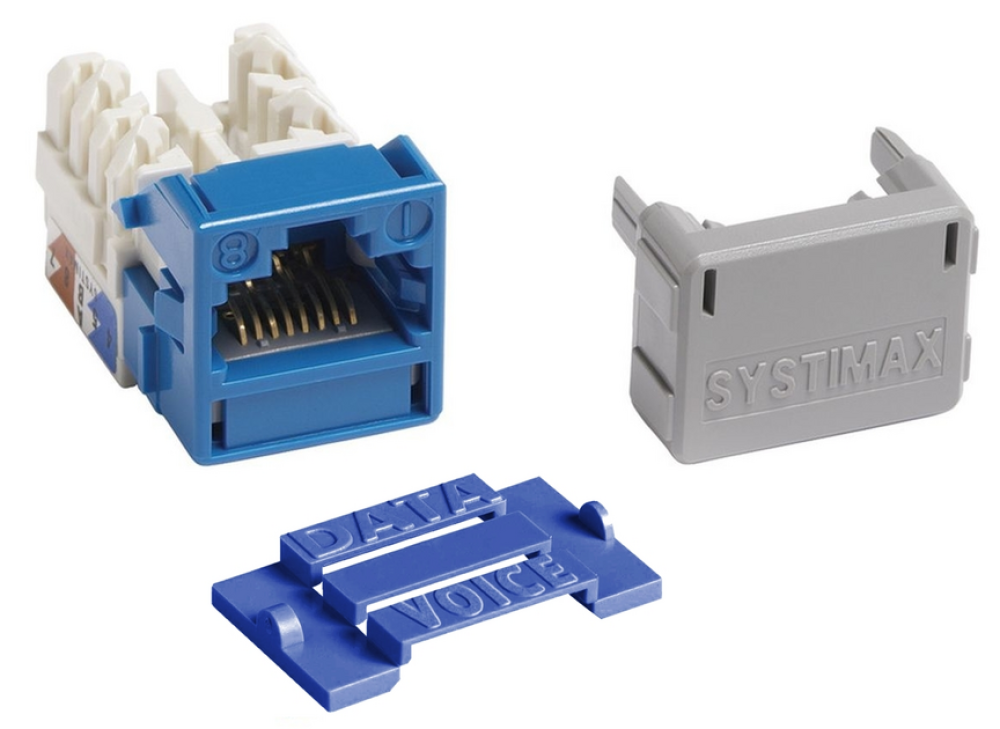

CommScope SYSTIMAX MGS400-318 Cat6 UTP Keystone Jack Information Outlet Blue – Part No. 700206758
SKU: 700206758
Category: Networking Products
Availability: 10000
Tag: commscope cat6 keystone jack commscope mgs400-318 commscope 700206758 systimax cat6 jack rj45 keystone jack cat6 utp keystone jack cat6 information outlet blue keystone jack network keystone module lan keystone jack ethernet wall jack rj45 information outlet structured cabling solution cat6 network connector utp modular jack gigaspeed xl mgs400 commscope networking accessories cat6 rj45 socket high-speed data jack t568a t568b compatible 22-24 awg keystone jack unshielded cat6 jack systimax modular jack copper network jack enterprise network cabling data communication outlet cat6 lan outlet network faceplate jack gigabit ethernet keystone professional network installation
Quantity:
Description
The CommScope SYSTIMAX® GigaSPEED XL® MGS400 Category 6 Modular Jack (Blue) is a high-performance unshielded RJ45 keystone jack designed for reliable and efficient structured cabling installations. Engineered to meet ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 Class E standards, it delivers dependable Gigabit Ethernet connectivity for commercial, enterprise, and data networking environments.
Featuring IDC termination compatible with both solid and stranded 22–24 AWG conductors, the MGS400 jack supports T568A and T568B wiring schemes and is easily terminated using a standard 110 punchdown tool. Its durable construction, gold-plated contacts, and support for IEEE 802.3bt Type 4 PoE (up to 90W) ensure long-lasting performance, excellent signal integrity, and reliable power delivery over Ethernet.
Designed for use with CommScope M Series faceplates and panels, this compact modular jack offers high durability with support for more than 3,000 mating cycles in PoE applications, making it an ideal solution for modern network infrastructures.
Product Specifications
Brand: Commscope
Model Number: 700206758
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Brand | CommScope GigaSPEED XL® |
| Portfolio | SYSTIMAX® |
| Product Series | MGS400 |
| Product Type | Modular Jack |
| Category | Cat 6 |
| Cable Type | Unshielded |
| Color | Blue |
| Conductor Type | Solid and Stranded |
| Mounting | M Series Faceplates and Panels |
| Wiring Scheme | T568A / T568B |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool |
| Minimum Re-Terminations | 20 Times |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
Physical Specifications
| Specification | Details |
|---|---|
| Height | 19.2 mm |
| Width | 21.1 mm |
| Depth | 30.2 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Compatible Solid Conductors | 22–24 AWG, 21 AWG (CommScope GigaREACH only) |
| Compatible Stranded Conductors | 22–24 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Contact Resistance | ≤ 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Insulation Resistance | ≥ 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering | Supports IEEE 802.3bt Type 4 PoE |
| PoE Capability | Up to 90W |
| PoE Durability | Over 3,000 Plug-to-Jack Mating Cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Copper-Nickel Alloy |
| Contact Plating Material | Gold |
| IDC Termination Material | Copper-Aluminum Alloy |
| Housing Material | PC + ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 100 N |
| Mating Cycle Compliance | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
| Certification | Status |
|---|---|
| ISO 9001:2015 | Compliant |
| REACH-SVHC | Compliant |
| RoHS | Compliant |
| UK RoHS | Compliant |
Key Features
- Category 6 unshielded modular jack for high-speed network installations
- Supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards
- Compatible with both solid and stranded 22–24 AWG conductors
- Supports T568A and T568B wiring configurations
- IEEE 802.3bt Type 4 PoE supports up to 90W
- Gold-plated contacts for superior conductivity and durability
- Suitable for CommScope M Series faceplates and patch panels
- High mating durability with over 3,000 PoE mating cycles
- UL 94 V-0 flame-retardant housing
- RoHS, UK RoHS, and REACH compliant for environmental safety
