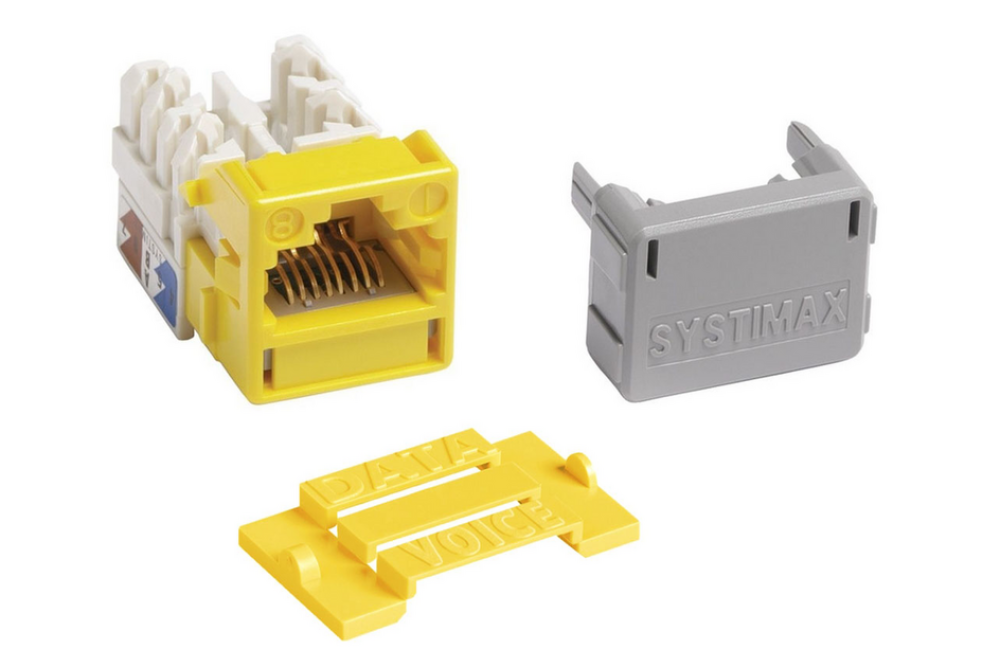

CommScope SYSTIMAX MGS400-123 Cat6 UTP Keystone Jack Information Outlet Yellow – Part No. 700206691
CommScope SYSTIMAX MGS400-123 Cat6 UTP Keystone Jack Information Outlet Yellow – Part No. 700206691
CommScope SYSTIMAX MGS400-123 Cat6 UTP Keystone Jack Information Outlet Yellow – Part No. 700206691
In stock

CommScope SYSTIMAX MGS400-123 Cat6 UTP Keystone Jack Information Outlet Yellow – Part No. 700206691

SKU: 700206691

Category: Networking Products

Availability: 10000

0.00/5 (0 Review)

Tag: commscope commscope systimax mgs400-123 700206691 cat6 keystone jack cat6 information outlet rj45 keystone jack rj45 modular jack utp keystone jack unshielded keystone jack cat6 network jack ethernet keystone jack lan keystone jack network information outlet systimax information outlet gigaspeed xl jack cat6 rj45 connector structured cabling network cabling accessories patch panel jack data networking outlet wall plate keystone jack t568a t568b compatible 110 punch down jack yellow keystone jack enterprise networking copper cabling solution cat6 utp jack high speed network connector 10 gigabit ready commscope cat6 jack systimax cat6 outlet network infrastructure telecom cabling data center cabling rj45 information outlet commercial networking lan connector ethernet outlet cat6 modular jack structured network cabling

Quantity:
Login to Order
Share on:

Description

Product Description

The CommScope SYSTIMAX® GigaSPEED XL® MGS400 Category 6 Modular Jack (Yellow) is a high-performance unshielded RJ45 connectivity solution designed for reliable Gigabit Ethernet network installations. Engineered to meet ANSI/TIA Category 6 and ISO/IEC Class E standards, this modular jack delivers excellent network performance for enterprise, commercial, and structured cabling environments.

Featuring IDC punch-down termination, compatibility with both solid and stranded conductors, and support for T568A/T568B wiring schemes, the MGS400 ensures quick and secure installation. Its robust construction, gold-plated contacts, and support for IEEE 802.3bt Type 4 PoE applications make it ideal for modern high-speed networks requiring dependable power and data transmission.

Built for long-term durability, the jack supports over 3,000 plug-to-jack mating cycles and offers excellent resistance to environmental conditions, making it suitable for demanding networking applications.

Product Specifications

Brand: Commscope

Model Number: 700206691

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 10

Listed date: 17th Jun, 2026

Specifications

General Specifications

SpecificationDetails
BrandCommScope
PortfolioSYSTIMAX®
Product SeriesMGS400
Product BrandGigaSPEED XL®
Product TypeModular Jack
CategoryCategory 6 (Cat6)
Cable TypeUnshielded
ColorYellow
Conductor TypeSolid & Stranded
Wiring StandardT568A, T568B
Mounting CompatibilityM Series Faceplates and Panels
Termination TypeIDC
Termination Tool110 Punchdown Tool
Minimum Punchdowns20 Times
Transmission StandardsANSI/TIA-568.2-D, ISO/IEC 11801 Class E

Physical Specifications

SpecificationDetails
Height19.2 mm
Width21.1 mm
Depth30.2 mm
Maximum Cable Diameter5.8 mm
Maximum Insulated Conductor Diameter1.45 mm
Contact Plating Thickness1.27 µm
Compatible Solid Conductor Gauge22–24 AWG, 21 AWG (CommScope GigaREACH only)
Compatible Stranded Conductor Gauge22–24 AWG

Electrical Specifications

SpecificationDetails
Maximum Contact Resistance20 mΩ
Current Rating1.5 A @ 20°C
Dielectric Withstand Voltage1000 Vac @ 60 Hz
Minimum Insulation Resistance500 MΩ
Safety Voltage Rating150 Vac
Remote PoweringSupports IEEE 802.3bt Type 4 PoE
PoE SupportUp to 90 W (Type 4)
PoE Durability>3000 Plug-to-Jack Mating Cycles

Material Specifications

SpecificationDetails
Contact Base MaterialCopper-Nickel Alloy
Contact Plating MaterialGold
IDC Termination MaterialCopper-Aluminum Alloy
Housing MaterialPC + ABS
Termination Contact PlatingTin

Mechanical Specifications

SpecificationDetails
Plug Retention Force100 N
Mating Cycle ComplianceIEC 60603-7 Series

Environmental Specifications

SpecificationDetails
Operating Temperature-10°C to +60°C
Storage Temperature-40°C to +70°C
Relative HumidityUp to 95% (Non-Condensing)
Flammability RatingUL 94 V-0
Safety CertificationcULus

Packaging Information

SpecificationDetails
Packaging Quantity1 Piece
Packaging TypeBag

Compliance & Certifications

CertificationStatus
RoHSCompliant
UK RoHSCompliant
REACH SVHCCompliant
China RoHSBelow Maximum Concentration Limits
ISO 9001:2015Manufactured under a Certified Quality Management System

Regional Availability

  • Asia
  • Australia & New Zealand
  • Europe, Middle East & Africa (EMEA)
  • Latin America
  • North America

Key Features

  • Category 6 performance for Gigabit Ethernet networks
  • Supports IEEE 802.3bt Type 4 PoE up to 90W
  • Gold-plated contacts for reliable connectivity
  • Compatible with solid and stranded 22–24 AWG conductors
  • T568A and T568B wiring compatibility
  • IDC termination with a standard 110 punch-down tool
  • Durable design supporting over 3,000 mating cycles
  • UL 94 V-0 flame-retardant housing
  • RoHS, REACH, and cULus compliant
  • Ideal for structured cabling, data centers, enterprise networks, and commercial installations.
