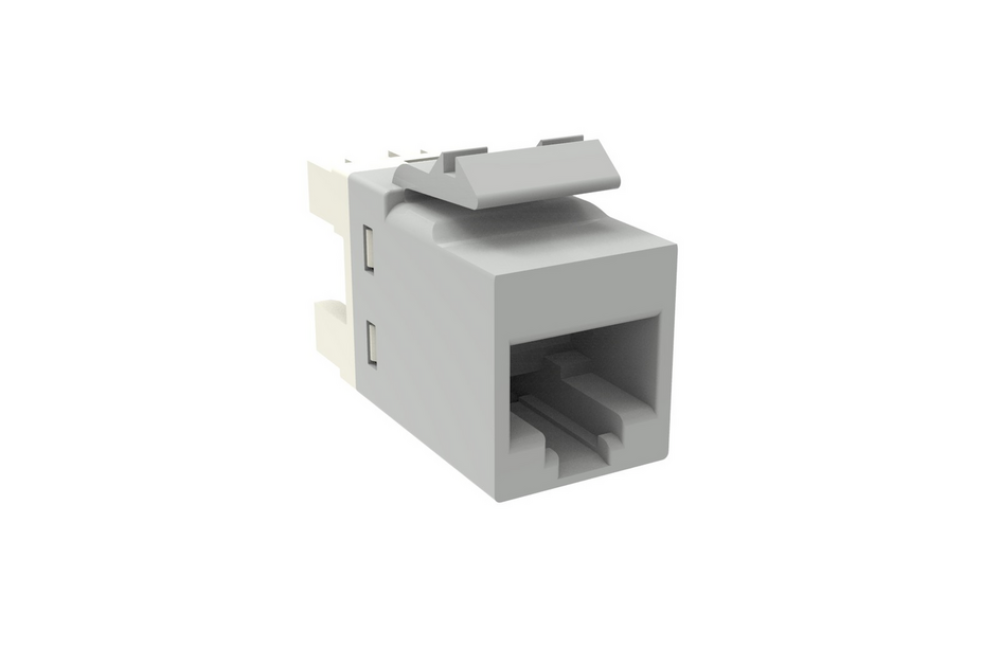

CommScope 1375055-4 SL110-6-GY Cat6 RJ45 Unshielded Modular Jack, Gray, SL Series
SKU: 1375055-4
Category: Networking Products
Availability: 10000
Tag: commscope cat6 jack commscope rj45 modular jack sl110-6-gy commscope 1375055-4 cat6 keystone jack rj45 network jack unshielded modular jack cat6 utp jack ethernet wall jack network connectivity jack rj45 female connector idc termination jack lan modular jack structured cabling solution cat6 network module gigabit ethernet jack sl series jack network faceplate jack patch panel jack data communication jack gray rj45 jack copper network jack tia 568 cat6 jack iso iec class e jack enterprise networking jack poe compatible cat6 jack solid and stranded cable jack professional network connector commscope netconnect high performance cat6 jack.
Quantity:
Description
The NETCONNECT® SL Series Category 6 Modular Jack is a high-performance unshielded networking connector designed to deliver reliable Gigabit Ethernet connectivity in structured cabling installations. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, this modular jack ensures excellent data transmission performance for commercial, enterprise, and residential networking applications.
Featuring IDC termination and compatibility with both solid and stranded conductors, the jack offers flexible installation options and easy termination using standard 110 punchdown or JTT termination tools. Its compact design allows seamless integration with SL Series faceplates and panels, making it an ideal solution for network outlets, patch panels, and telecommunications rooms.
Built with premium materials including gold-plated beryllium copper contacts and phosphor bronze IDC terminals, the jack provides superior conductivity, long-term durability, and consistent network performance. It fully supports IEEE 802.3bt Type 4 Power over Ethernet (PoE++) applications up to 90W, ensuring safe and efficient delivery of power and data over a single cable.
Designed for demanding environments, the NETCONNECT® SL Series Cat 6 Modular Jack offers excellent electrical performance, high plug retention strength, and compliance with global safety and environmental standards, making it a dependable choice for modern network infrastructures.
Key Features- Category 6 performance for high-speed Ethernet networks
- Supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards
- Unshielded design suitable for structured cabling systems
- Compatible with both T568A and T568B wiring schemes
- Supports solid and stranded conductors
- IDC termination for secure and reliable connections
- Compatible with 110 Punchdown and JTT termination tools
- Gold-plated contacts for enhanced signal integrity and durability
- Fully supports IEEE 802.3bt Type 4 PoE applications up to 90W
- Durable construction with high mating cycle performance
- Mounts easily into SL Series faceplates and panels
- UL 94 V-0 flame-retardant housing for added safety
- Compliant with RoHS, REACH, UK-RoHS, China RoHS, and RCM standards
- Structured cabling systems
- Enterprise LAN networks
- Office and commercial buildings
- Data and telecommunications rooms
- Gigabit Ethernet installations
- Power over Ethernet (PoE/PoE+/PoE++) deployments
- Network wall outlets and patch panels
Product Specifications
Brand: Commscope
Model Number: 1375055-4
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
Product Information
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Portfolio | NETCONNECT® |
| Series | SL Series |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
| Color | Gray |
Network Performance
| Specification | Details |
|---|---|
| Category | Cat6 |
| Cable Type | Unshielded |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Wiring Standards | T568A, T568B |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool, JTT Termination Tool |
| Minimum Punchdown Cycles | 20 Times |
Cable Compatibility
| Specification | Details |
|---|---|
| Conductor Type | Solid, Stranded |
| Solid Conductor Gauge | 22–24 AWG |
| Stranded Conductor Gauge | 24–26 AWG |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
Dimensions
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
Electrical Specifications
| Specification | Details |
|---|---|
| Contact Resistance | ≤ 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 VAC @ 60 Hz |
| Insulation Resistance | ≥ 500 MΩ |
| Safety Voltage Rating | 150 VAC |
PoE Support
| Specification | Details |
|---|---|
| Remote Powering | Supports IEEE 802.3bt Type 4 PoE |
| PoE Power Capacity | Up to 90W |
| PoE Durability | >3000 Plug-to-Jack Mating Cycles |
| Compliance | IEC 60512-99-002 |
Material Specifications
| Specification | Details |
|---|---|
| Housing Material | PC + ABS |
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Termination Contact Plating | Tin |
| Contact Plating Thickness | 1.27 µm |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycle Standard | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Installation
| Specification | Details |
|---|---|
| Mounting Compatibility | SL Series Faceplates and Panels |
| Integrated Dust Cover | None |
Packaging
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
| Certification | Status |
|---|---|
| RoHS | Compliant |
| UK RoHS | Compliant |
| REACH SVHC | Compliant |
| China RoHS | Below Maximum Concentration Value |
| RCM | Compliant with Electrical Safety & Telecommunications Requirements |
