Description

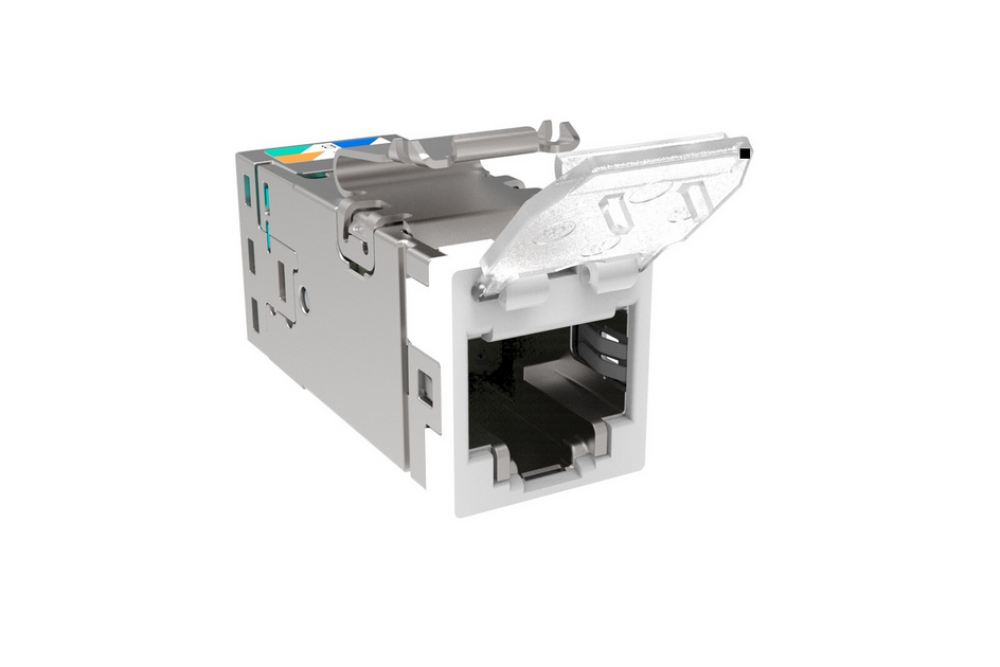

CommScope 2153365-3 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, White, 4-PairProduct Description

The CommScope 2153365-3 SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance network connectivity solution designed for demanding enterprise and structured cabling installations. Engineered to support Category 6A transmission standards, this shielded modular jack delivers reliable high-speed data transmission while minimizing electromagnetic interference (EMI) and crosstalk.

Featuring an integrated hinged dust cover, the jack helps protect the RJ45 interface from dust and contaminants when not in use, ensuring long-term network reliability. Compatible with both solid and stranded conductors, it supports T568A and T568B wiring schemes and installs easily into CommScope SL Series faceplates and panels using the JTT termination tool.

The jack is fully compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards and supports advanced Power over Ethernet (PoE++) applications up to IEEE 802.3bt Type 4 (90W). Its robust construction, gold-plated contacts, and durable shielded design make it ideal for data centers, commercial buildings, offices, and high-performance network infrastructures.

Product Specifications

Brand: Commscope

Model Number: 2153365-3

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 10

Listed date: 18th Jun, 2026

Specifications

General Specifications

SpecificationDetails
BrandCommScope
Model Number2153365-3
Product SeriesSLX Series
Product TypeRJ45 Modular Jack
PortfolioNETCONNECT®
CategoryCat6A
Cable TypeShielded
ColorAlpine White
Conductor TypeSolid & Stranded
Dust CoverIntegrated Hinged Dust Cover
Mounting CompatibilitySL Series Faceplates and Panels
Termination ToolJTT Termination Tool
Termination TypeIDC
Wiring StandardsT568A, T568B
Transmission StandardsANSI/TIA-568.2-D, ISO/IEC 11801 Class EA

Physical Specifications

SpecificationDetails
Height16.13 mm
Width14.44 mm
Depth38.8 mm
Maximum Cable Diameter8.5 mm
Maximum Insulated Conductor Diameter1.6 mm
Contact Plating Thickness1.27 µm
Solid Conductor Gauge22–26 AWG
Stranded Conductor Gauge24–26 AWG

Electrical Specifications

SpecificationDetails
Maximum Contact Resistance20 mΩ
Current Rating1.5 A @ 20°C
Dielectric Withstand Voltage (Conductive Surface)1500 Vac @ 60 Hz
Dielectric Withstand Voltage (Contact-to-Contact)1000 Vac @ 60 Hz
Minimum Insulation Resistance500 MΩ
Safety Voltage Rating150 Vac
Remote Powering SupportIEEE 802.3bt Type 4 Compliant
PoE DurabilitySupports 90W PoE applications with over 3000 mating cycles

Material Specifications

SpecificationDetails
Contact Base MaterialBeryllium Copper
Contact Plating MaterialGold
IDC Termination MaterialPhosphor Bronze
Housing MaterialZamak, PC+ABS
Termination Contact PlatingTin

Mechanical Specifications

SpecificationDetails
Plug Retention Force90 N
Mating Cycle ComplianceIEC 60603-7 Series

Environmental Specifications

SpecificationDetails
Operating Temperature-10°C to +60°C
Storage Temperature-40°C to +70°C
Relative HumidityUp to 95% Non-Condensing
Flammability RatingUL 94 V-0
Safety StandardcULus

Packaging Information

SpecificationDetails
Packaging TypeCardboard Box

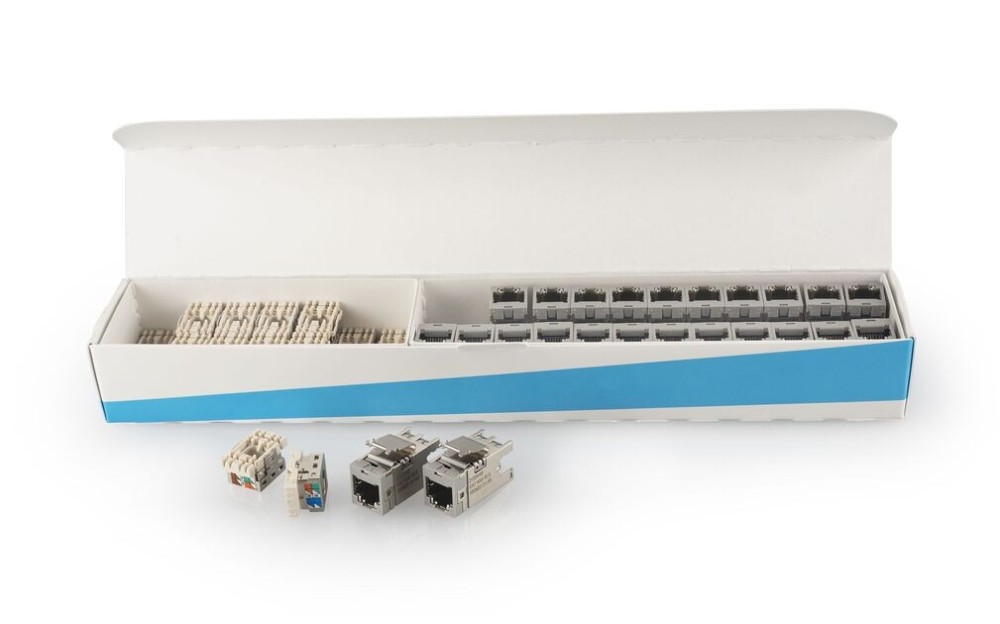

Packaging Quantity24 Units
Packaging MaterialEco-Friendly, Plastic-Free

Compliance & Certifications

CertificationStatus
RoHSCompliant
UK RoHSCompliant
China RoHSBelow Maximum Concentration Value
REACH SVHCCompliant

Key Features

  • Cat6A shielded RJ45 modular jack for high-speed network connectivity.
  • Integrated hinged dust cover for enhanced port protection.
  • Supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards.
  • Compatible with both solid and stranded conductors.
  • Supports IEEE 802.3bt Type 4 (90W) Power over Ethernet applications.
  • Gold-plated contacts for reliable signal transmission and durability.
  • Fits CommScope SL Series faceplates and patch panels.
  • Robust shielded construction reduces EMI and crosstalk.
  • Eco-friendly plastic-free packaging.
  • Ideal for enterprise networks, data centers, commercial buildings, and structured cabling systems.
