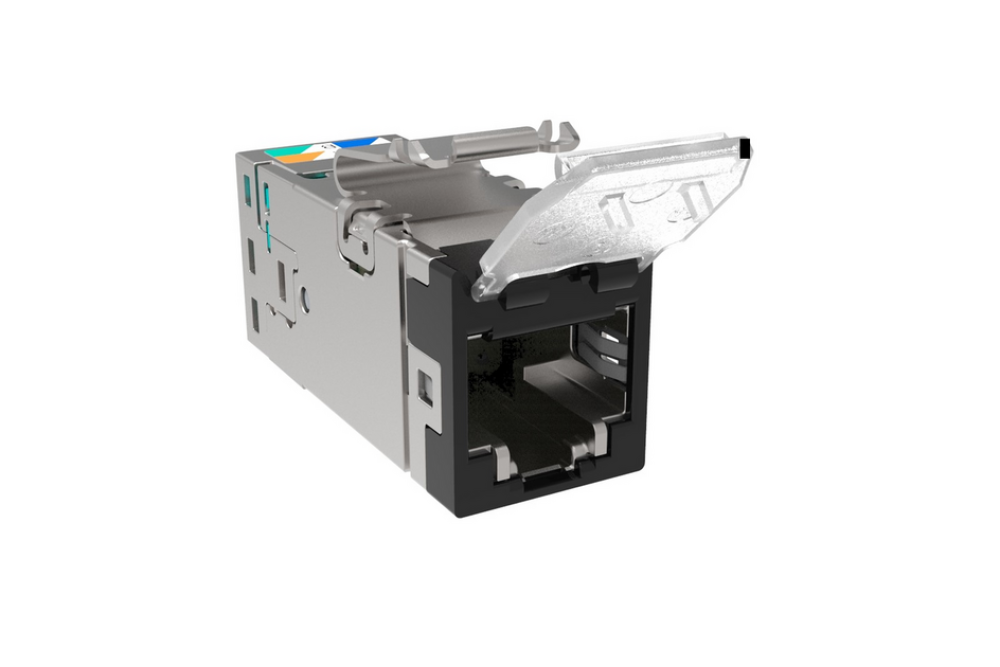

CommScope 2153365-2 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, Black, 4-Pair
SKU: 2153365-2
Category: Networking Products
Availability: 10000
Tag: commscope cat6a jack commscope rj45 jack commscope slx series jack commscope 2153365-2 slx-dc-6as-bk cat6a shielded modular jack rj45 cat6a keystone jack shielded rj45 jack 4 pair rj45 jack black rj45 jack black cat6a jack network keystone jack ethernet modular jack lan socket cat6a structured cabling jack shielded network connector poe compatible rj45 jack 10 gigabit ethernet jack tia 568 compliant jack idc termination jack dust cover rj45 jack sl series modular jack commscope netconnect jack enterprise network jack data networking connector cat6a ethernet outlet high performance rj45 jack shielded keystone module rj45 female connector professional network cabling black network jack black keystone jack black ethernet socket black rj45 connector black data outlet black modular jack
Quantity:
Description
The CommScope 2153365-2 SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance network connectivity solution designed for enterprise-grade structured cabling systems. Engineered to support Category 6A performance standards, this shielded modular jack ensures reliable high-speed data transmission for modern network infrastructures, including Gigabit and 10 Gigabit Ethernet applications.
Featuring a durable black finish and an integrated hinged dust cover, the jack protects contacts from dust and contaminants while maintaining optimal network performance. Its shielded construction minimizes electromagnetic interference (EMI) and crosstalk, making it ideal for demanding commercial, industrial, and data center environments.
The SLX Series jack supports both solid and stranded conductors, offers compatibility with T568A and T568B wiring schemes, and is designed for installation in SL Series faceplates and panels. It also fully supports IEEE 802.3bt Type 4 PoE (90W) applications, ensuring reliable power and data delivery over a single Ethernet cable.
Key Features- Category 6A shielded RJ45 modular jack for high-speed network applications
- Integrated hinged dust cover for enhanced port protection
- Supports 10 Gigabit Ethernet and Class EA channel performance
- Compatible with both solid and stranded conductors
- Supports T568A and T568B wiring configurations
- Designed for use with CommScope SL Series faceplates and panels
- IDC termination for secure and reliable cable connections
- Fully supports IEEE 802.3bt Type 4 PoE (up to 90W)
- High durability with over 3,000 mating cycles
- Gold-plated contacts for superior conductivity and long-term reliability
- Ideal for enterprise networks, commercial buildings, and data centers
Product Specifications
Brand: Commscope
Model Number: 2153365-2
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
| Category | Specification |
|---|---|
| Product Name | CommScope 2153365-2 SLX Series RJ45 Cat6A Shielded Modular Jack |
| Product Type | Modular Jack |
| Series | SLX Series |
| Brand | CommScope NETCONNECT® |
| ANSI/TIA Category | Category 6A |
| Cable Type | Shielded |
| Color | Black |
| Conductor Compatibility | Solid and Stranded |
| Integrated Dust Cover | Hinged Type |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | JTT Termination Tool |
| Wiring Standards | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
| Maximum Cable Diameter | 8.5 mm |
| Maximum Insulated Conductor Diameter | 1.6 mm |
| Contact Plating Thickness | 1.27 µm |
| Solid Conductor Gauge | 22–26 AWG |
| Stranded Conductor Gauge | 24–26 AWG |
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage (Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Remote Powering Support | IEEE 802.3bt Type 4 Compliant |
| PoE Support | Up to 90W (Type 4) |
| PoE Durability | >3000 Plug-to-Jack Mating Cycles |
| Safety Voltage Rating | 150 Vac |
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
| Plug Retention Force | 90 N |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
| RoHS Compliance | Yes |
| UK RoHS Compliance | Yes |
| REACH-SVHC Compliance | Yes |
| China RoHS Compliance | Below Maximum Concentration Value |
| RCM Compliance | Electrical Safety & Telecommunications Requirements |
