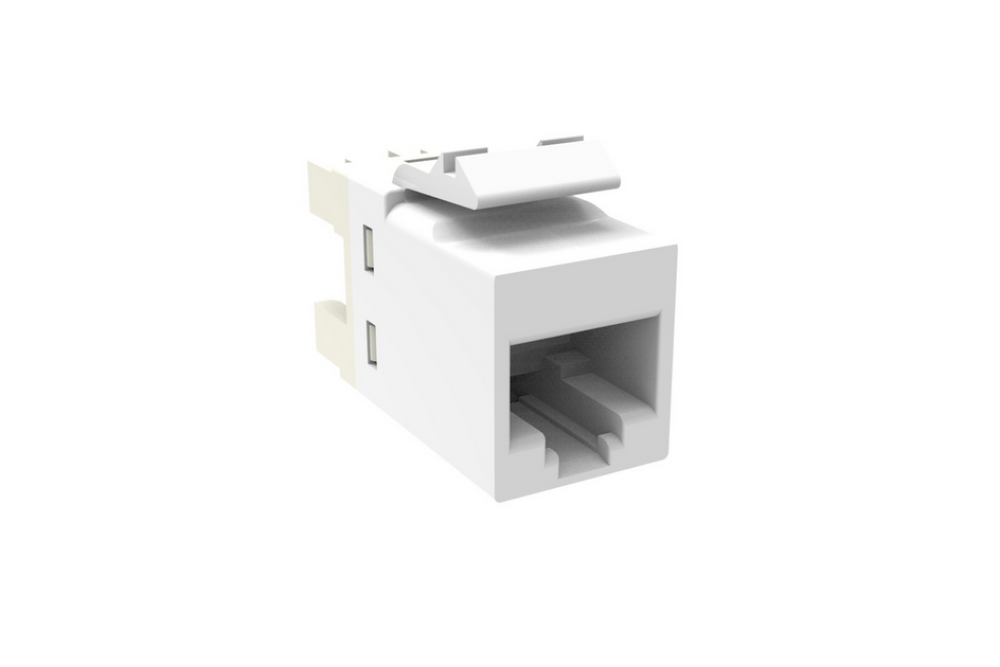

CommScope 1375055-3 SL110-6-P.WH Cat6 RJ45 Modular Jack Unshielded Keystone Jack Pro White
SKU: 1375055-3
Category: Networking Products
Availability: 10000
Tag: commscope cat6 jack commscope rj45 jack commscope keystone jack sl110-6-p.wh 1375055-3 cat6 keystone jack rj45 modular jack unshielded keystone jack cat6 network jack ethernet keystone jack lan keystone jack network outlet jack utp rj45 jack cat6 utp jack structured cabling jack idc termination jack t568a t568b compatible sl series modular jack pro white keystone jack network faceplate jack data communication jack copper network jack gigabit ethernet jack commscope netconnect cat6 data jack wall plate keystone jack patch panel jack enterprise networking accessories rj45 network connector high performance cat6 jack poe compatible rj45 jack commercial network cabling office network infrastructure ethernet wall jack commscope structured cabling network installation accessories.
Quantity:
Description
The CommScope NETCONNECT® SL Series Category 6 Modular Jack is a high-performance unshielded RJ45 connectivity solution designed for reliable structured cabling networks. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, this Cat6 modular jack supports high-speed data transmission for voice, data, and multimedia applications. Its Pro White finish blends seamlessly with professional network installations and is compatible with SL Series faceplates and panels.
Designed for both solid and stranded conductors, the jack features IDC termination and supports T568A and T568B wiring schemes for flexible installation. Built with premium materials including gold-plated beryllium copper contacts and phosphor bronze IDC terminals, it ensures excellent conductivity, durability, and long-term performance.
The jack fully supports IEEE 802.3bt Type 4 Power over Ethernet (PoE++) applications up to 90W and is rated for over 3,000 plug-to-jack mating cycles, making it ideal for modern high-power network deployments. Its robust construction, UL 94 V-0 flammability rating, and compliance with international safety and environmental standards make it a dependable choice for enterprise, commercial, and residential networking environments.
Product Specifications
Brand: Commscope
Model Number: 1375055-3
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Portfolio | NETCONNECT® |
| Series | SL Series |
| ANSI/TIA Category | Category 6 |
| Cable Type | Unshielded |
| Color | Pro White |
| Conductor Type | Solid and Stranded |
| Mounting | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Wiring Schemes | T568A, T568B |
| Termination Tool | 110 Punchdown Tool, JTT Termination Tool |
| Minimum Re-Terminations | 20 Times |
| Integrated Dust Cover | None |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
Dimensions
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Compatible Solid Conductor Gauge | 22–24 AWG |
| Compatible Stranded Conductor Gauge | 24–26 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Contact Resistance | ≤ 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Insulation Resistance | ≥ 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| Remote Powering | Supports IEEE 802.3bt Type 4 and IEC 60512-99-002 Requirements |
| PoE Durability | Over 3,000 Plug-to-Jack Mating Cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | PC + ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N (IEC 60603-7 Compliant) |
| Mating Cycle Compliance | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95%, Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Regulatory Compliance
| Certification | Status |
|---|---|
| China RoHS | Below Maximum Concentration Value |
| RCM | Compliant with Electrical Safety & Telecommunications Requirements |
| REACH-SVHC | Compliant |
| RoHS | Compliant |
| UK RoHS | Compliant |
