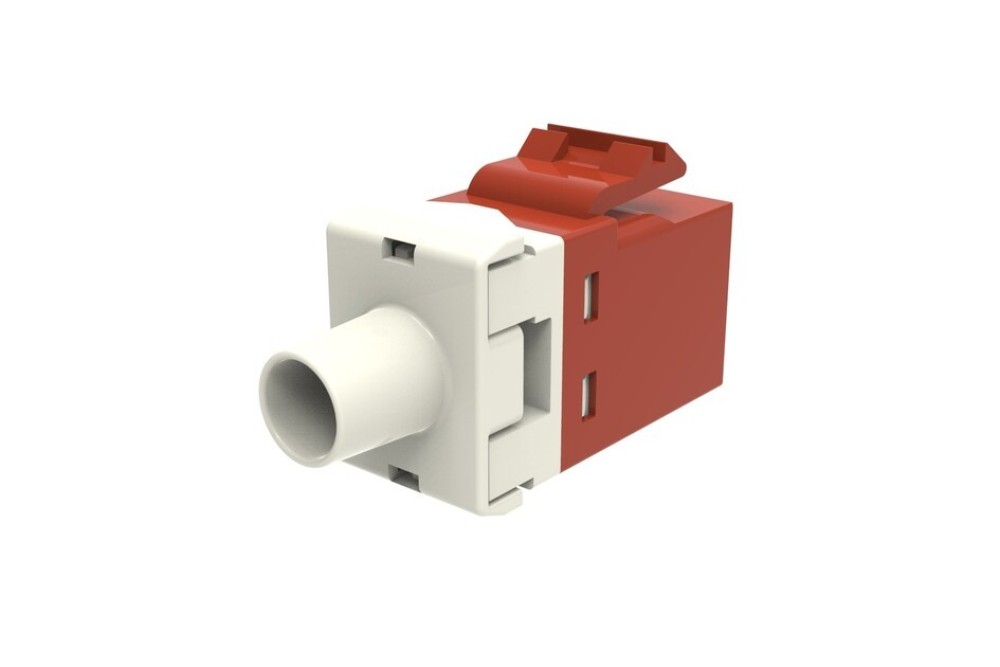

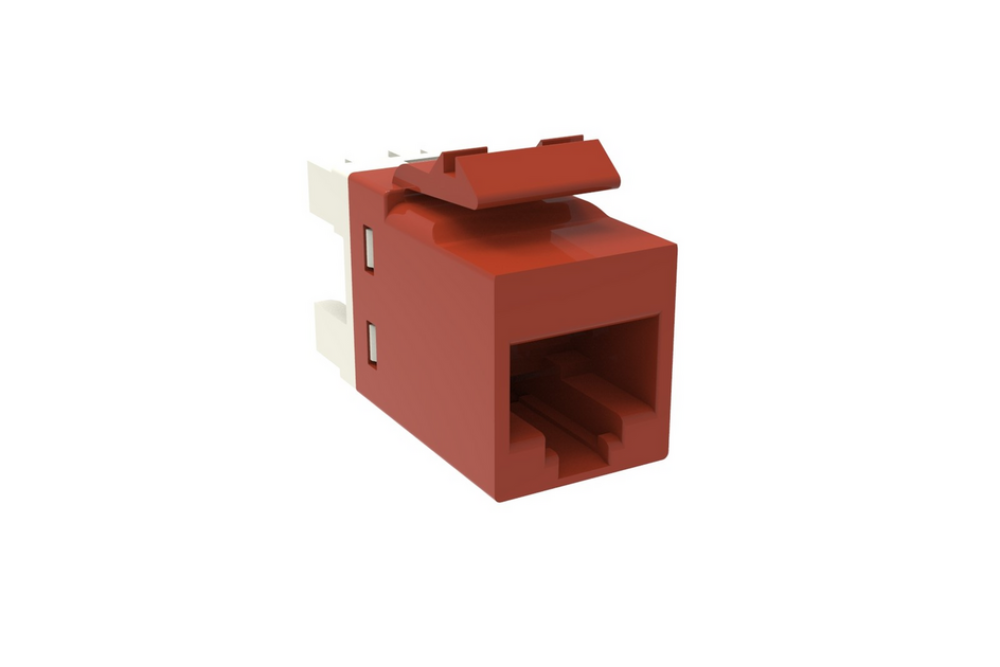

CommScope 1375055-5 SL110-6-RD Cat6 RJ45 Unshielded Modular Jack, Red, SL Series
SKU: 1375055-5
Category: Networking Products
Availability: 100000
Tag: commscope cat6 jack commscope rj45 jack sl110-6-rd 1375055-5 cat6 keystone jack rj45 modular jack unshielded modular jack cat6 network jack lan keystone jack ethernet wall jack utp rj45 jack commscope sl series cat6 data jack network connectivity module idc termination jack t568a t568b compatible structured cabling solution network faceplate jack patch panel jack cat6 ethernet connector red rj45 jack commscope netconnect gigabit network jack lan outlet module commercial network cabling data communication jack rj45 female connector network infrastructure component cat6 utp keystone high performance cat6 jack
Quantity:
Description
The NETCONNECT® SL Series Category 6 Modular Jack is a high-performance unshielded networking connector designed to deliver reliable Gigabit Ethernet connectivity for structured cabling installations. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, this Cat6 jack supports both T568A and T568B wiring schemes, making it ideal for commercial, enterprise, and residential network deployments.
Featuring an orange finish for easy network identification and management, the jack is compatible with both solid and stranded conductors and can be mounted seamlessly into SL Series faceplates and panels. Its IDC termination design ensures secure cable connections using standard 110 punchdown or JTT termination tools.
Built with premium materials including gold-plated beryllium copper contacts and phosphor bronze IDC terminations, the jack offers excellent conductivity, durability, and long-term performance. It fully supports IEEE 802.3bt Type 4 Power over Ethernet (PoE++) applications up to 90W and is designed to withstand more than 3,000 plug-to-jack mating cycles, making it suitable for high-demand networking environments.
With a UL 94 V-0 flammability rating, cULus certification, and compliance with RoHS, REACH, UK-RoHS, China RoHS, and RCM requirements, this modular jack provides a dependable and standards-compliant solution for modern network infrastructures.
Product Specifications
Brand: Commscope
Model Number: 1375055-5
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
Product Information
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Portfolio | NETCONNECT® |
| Series | SL Series |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
| Color | Orange |
Network Performance
| Specification | Details |
|---|---|
| Category | Cat 6 |
| Cable Type | Unshielded |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Wiring Schemes | T568A, T568B |
| Conductor Type | Solid, Stranded |
| Remote Powering | IEEE 802.3bt Type 4 (PoE++) Support |
| PoE Capability | Up to 90W |
| PoE Durability | Over 3,000 mating cycles |
Termination Specifications
| Specification | Details |
|---|---|
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool, JTT Termination Tool |
| Minimum Punchdowns | 20 Times |
| Compatible Solid Conductor Gauge | 22–24 AWG |
| Compatible Stranded Conductor Gauge | 26–22 AWG |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
Dimensions
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
Electrical Specifications
| Specification | Details |
|---|---|
| Contact Resistance | ≤ 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Insulation Resistance | ≥ 500 MΩ |
| Safety Voltage Rating | 150 Vac |
Material Specifications
| Specification | Details |
|---|---|
| Housing Material | PC + ABS |
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| Contact Plating Thickness | 1.27 µm |
| IDC Termination Material | Phosphor Bronze |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Mounting | SL Series Faceplates and Panels |
| Plug Retention Force | ≥ 50 N |
| Mating Cycle Standard | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
| Certification | Status |
|---|---|
| RoHS | Compliant |
| UK RoHS | Compliant |
| REACH SVHC | Compliant |
| China RoHS | Below Maximum Concentration Value |
| RCM | Compliant |
| cULus | Certified |
Key Features
- Category 6 performance for high-speed Ethernet networks.
- Supports both T568A and T568B wiring standards.
- Compatible with solid and stranded conductors.
- Gold-plated contacts for superior signal integrity.
- Supports IEEE 802.3bt Type 4 PoE++ up to 90W.
- Durable design rated for over 3,000 mating cycles.
- Fits SL Series faceplates and patch panels.
- RoHS, REACH, RCM, and cULus compliant.
- UL 94 V-0 flame-retardant housing for enhanced safety.
