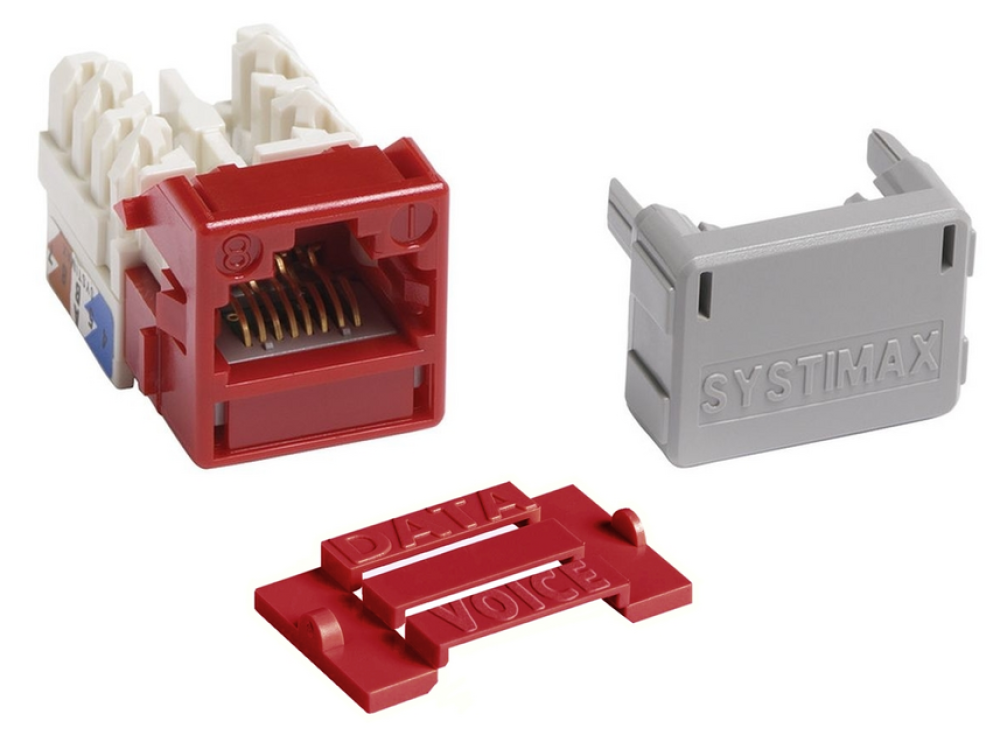

CommScope SYSTIMAX MGS400-317 Cat6 UTP Keystone Jack Information Outlet Red – Part No. 700206741
SKU: 700206741
Category: Networking Products
Availability: 10000
Tag: cat6 keystone jack red commscope cat6 jack commscope mgs400-317 commscope 700206741 systimax keystone jack rj45 keystone jack red cat6 utp keystone jack cat6 network jack rj45 information outlet commscope information outlet gigaspeed xl jack systimax mgs400 series cat6 lan jack ethernet keystone jack network outlet red utp rj45 jack structured cabling components cat6 modular jack t568a t568b compatible jack 110 punch down keystone jack poe compatible cat6 jack high speed network connector gigabit ethernet jack lan information outlet data networking jack commscope networking products red keystone module cat6 wall plate jack enterprise network cabling rj45 unshielded keystone jack
Quantity:
Description
The CommScope SYSTIMAX® GigaSPEED XL® MGS400 Category 6 Modular Jack (Red) is a high-performance unshielded RJ45 keystone jack designed for reliable and efficient structured cabling installations. Engineered to meet ANSI/TIA Category 6 and ISO/IEC Class E standards, it delivers dependable Gigabit Ethernet connectivity for commercial, enterprise, and data networking environments.
Featuring IDC termination with support for both T568A and T568B wiring schemes, the MGS400 jack is compatible with solid and stranded conductors and can be terminated using a standard 110 punchdown tool. Its durable construction, gold-plated contacts, and support for IEEE 802.3bt Type 4 PoE applications ensure long-term performance, even in high-power network deployments.
The compact design allows seamless installation into CommScope M Series faceplates and panels, making it an ideal choice for structured cabling systems requiring reliable data transmission, excellent durability, and compliance with international networking standards.
Product Specifications
Brand: Commscope
Model Number: 700206741
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Brand | CommScope SYSTIMAX® GigaSPEED XL® |
| Series | MGS400 |
| ANSI/TIA Category | Category 6 |
| Cable Type | Unshielded |
| Color | Red |
| Conductor Type | Solid & Stranded |
| Mounting | M Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool |
| Minimum Terminations | 20 Punchdowns |
| Wiring Schemes | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Integrated Dust Cover | None |
Physical Specifications
| Specification | Details |
|---|---|
| Height | 19.2 mm |
| Width | 21.1 mm |
| Depth | 30.2 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Compatible Solid Conductor Gauge | 22–24 AWG, 21 AWG (CommScope GigaREACH only) |
| Compatible Stranded Conductor Gauge | 22–24 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering Support | IEEE 802.3bt Type 4 (PoE++) Compatible |
| PoE Durability | Supports 90W PoE applications with over 3,000 mating cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Copper-Nickel Alloy |
| Contact Plating Material | Gold |
| IDC Termination Material | Copper-Aluminum Alloy |
| Housing Material | PC + ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 100 N (IEC 60603-7 Compliant) |
| Mating Cycles | IEC 60603-7 Series Compliant |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
- China RoHS Compliant
- RoHS Compliant
- UK RoHS Compliant
- REACH SVHC Compliant
- ISO 9001:2015 Quality Management System
- Designed and manufactured to international networking and safety standards
Key Features
- Category 6 performance for high-speed data networks
- Supports Gigabit Ethernet applications
- Compatible with both solid and stranded conductors
- Gold-plated contacts for reliable signal transmission
- Supports IEEE 802.3bt Type 4 (90W) PoE++
- Compatible with T568A and T568B wiring standards
- Durable IDC termination design
- Fits CommScope M Series faceplates and panels
- UL 94 V-0 flame-retardant housing
- Ideal for enterprise, commercial, and structured cabling installations.
