Description

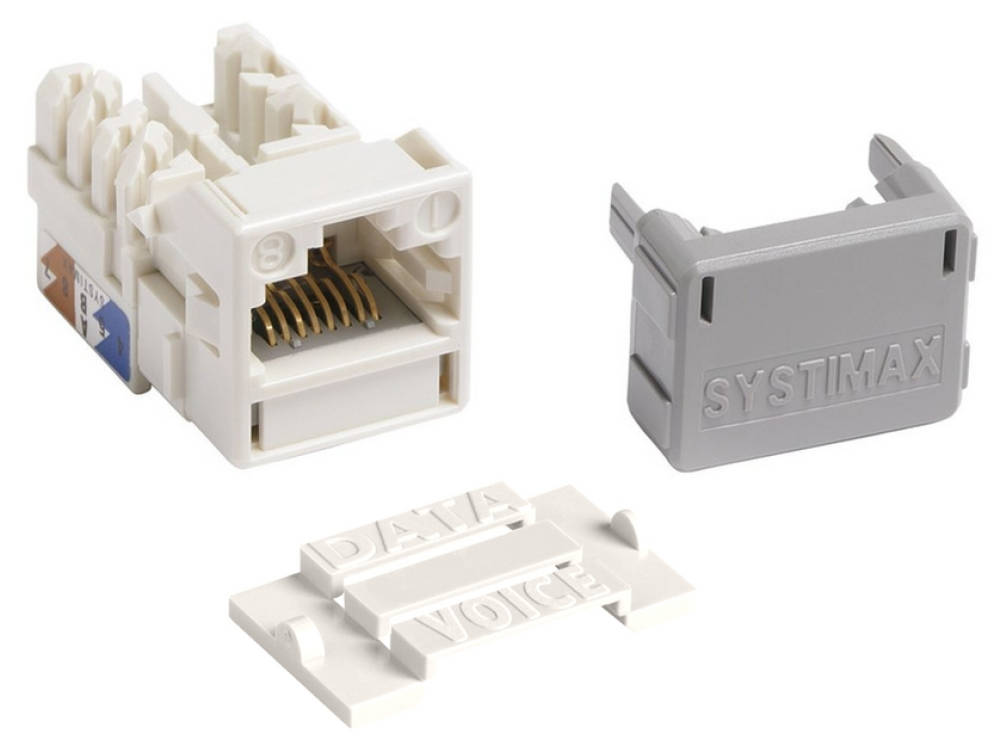

The CommScope SYSTIMAX® GigaSPEED XL® MGS400 Category 6 Modular Jack (White) is a high-performance unshielded RJ45 keystone jack designed for reliable Gigabit Ethernet network installations. Engineered to meet ANSI/TIA Category 6 and ISO/IEC Class E standards, this modular jack delivers excellent data transmission performance for commercial, enterprise, and structured cabling environments.
Compatible with both solid and stranded conductors, the MGS400 jack features IDC termination and supports T568A and T568B wiring schemes for flexible installation. Its robust construction, gold-plated contacts, and copper-alloy termination components ensure long-term durability and stable network connectivity.
Designed for use with SYSTIMAX M Series faceplates and panels, the jack fully supports IEEE 802.3bt Type 4 Power over Ethernet (PoE++) applications up to 90W, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other network devices. With superior plug retention, high mating-cycle durability, and compliance with global safety and environmental standards, the MGS400 is a dependable solution for modern network infrastructure deployments.
Product Specifications
Brand: Commscope
Model Number: 700206725
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
General Information
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Brand | GigaSPEED XL® |
| Series | MGS400 |
| Portfolio | SYSTIMAX® |
| Category | ANSI/TIA Category 6 |
| Cable Type | Unshielded |
| Color | White |
| Conductor Type | Solid & Stranded |
| Wiring Standards | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Mounting Compatibility | M Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool |
| Minimum Punchdown Cycles | 20 Times |
| Dust Cover | None |
Physical Specifications
| Specification | Details |
|---|---|
| Height | 19.2 mm |
| Width | 21.1 mm |
| Depth | 30.2 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Solid Conductor Gauge | 22–24 AWG (21 AWG for CommScope GigaREACH cable only) |
| Stranded Conductor Gauge | 22–24 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering Support | IEEE 802.3bt Type 4 Compliant |
| PoE Support | Up to 90W (PoE++) |
| PoE Durability | Over 3,000 plug-to-jack mating cycles |
Material Specifications
| Specification | Details |
|---|---|
| Housing Material | PC + ABS |
| Contact Base Material | Copper-Nickel Alloy |
| Contact Plating Material | Gold |
| IDC Termination Material | Copper-Aluminum Alloy |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 100 N |
| Mating Cycles | Complies with IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Certification | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
| Standard | Status |
|---|---|
| RoHS | Compliant |
| UK RoHS | Compliant |
| REACH SVHC | Compliant |
| China RoHS | Below Maximum Concentration Value |
| ISO 9001:2015 | Quality Management System Certified |
| IEC 60512-99-002 | Compliant |
| IEEE 802.3bt Type 4 | Compliant |
Regional Availability
- Asia
- Australia & New Zealand
- Europe, Middle East & Africa (EMEA)
- Latin America
- North America
