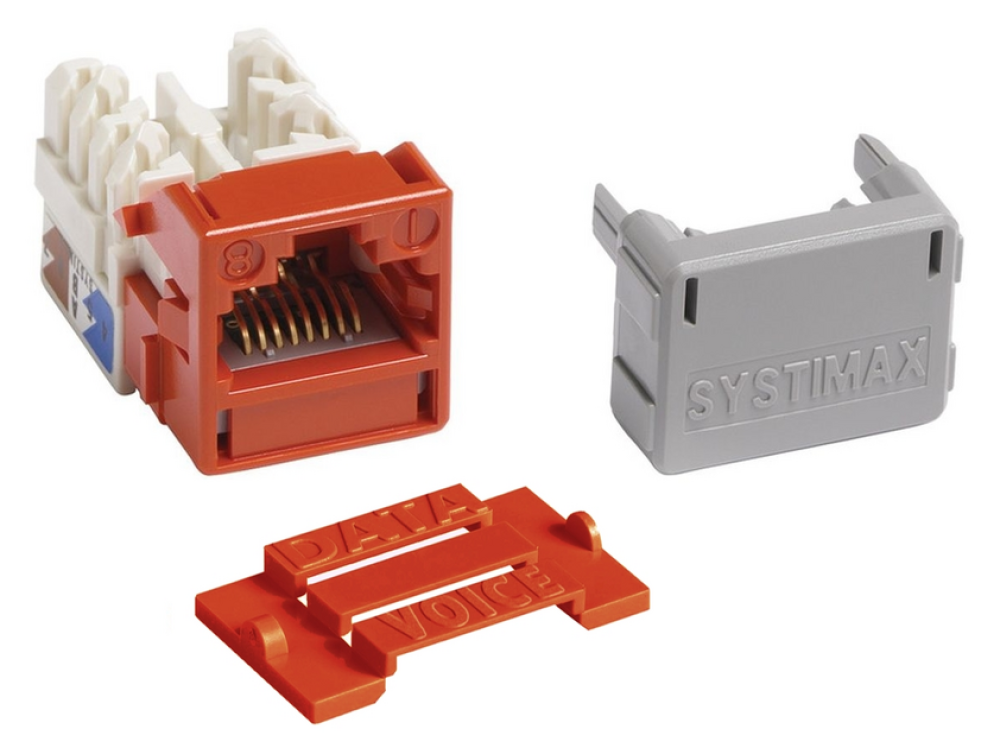

CommScope SYSTIMAX MGS400-112 Cat6 UTP Keystone Jack Information Outlet Orange – Part No. 700206683
SKU: 700206683
Category: Networking Products
Availability: 10000
Tag: commscope cat6 keystone jack commscope systimax mgs400-112 commscope 700206683 cat6 utp keystone jack rj45 cat6 jack orange keystone jack systimax information outlet gigaspeed xl jack cat6 network connector rj45 modular jack lan keystone jack unshielded keystone jack cat6 ethernet jack structured cabling jack 110 punch down jack t568a t568b compatible jack network information outlet cat6 data jack copper network jack enterprise network keystone high performance cat6 jack commscope network solutions cat6 rj45 information outlet utp network jack gigabit ethernet keystone jack
Quantity:
Description
The CommScope SYSTIMAX® GigaSPEED XL® MGS400 Category 6 Modular Jack (Orange) is a high-performance unshielded RJ45 keystone jack designed for reliable Gigabit Ethernet network installations. Engineered to meet ANSI/TIA Category 6 and ISO/IEC Class E standards, this modular jack delivers excellent network performance for commercial, enterprise, and structured cabling applications.
Built with premium gold-plated contacts and durable PC+ABS housing, the MGS400 jack supports both solid and stranded conductors, ensuring secure and consistent connectivity. It is compatible with M Series faceplates and panels and supports both T568A and T568B wiring schemes for flexible installation. The jack is fully compliant with IEEE 802.3bt Type 4 PoE (90W) applications, making it ideal for powering modern network devices such as IP cameras, wireless access points, and VoIP phones.
Designed for long-term reliability, the MGS400 offers excellent electrical performance, supports over 3,000 PoE mating cycles, and operates in demanding environmental conditions, making it a dependable solution for professional networking deployments.
Product Specifications
Brand: Commscope
Model Number: 700206683
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Brand | CommScope |
| Portfolio | SYSTIMAX® |
| Product Series | MGS400 |
| Product Brand | GigaSPEED XL® |
| Product Type | Modular Jack |
| Category | Category 6 (Cat6) |
| Cable Type | Unshielded |
| Color | Orange |
| Conductor Type | Solid & Stranded |
| Wiring Standard | T568A / T568B |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool |
| Minimum Terminations | 20 Punchdowns |
| Mounting Compatibility | M Series Faceplates and Panels |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Integrated Dust Cover | None |
Physical Specifications
| Specification | Details |
|---|---|
| Height | 19.2 mm |
| Width | 21.1 mm |
| Depth | 30.2 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Solid Conductor Gauge | 22–24 AWG (21 AWG for CommScope GigaREACH cable only) |
| Stranded Conductor Gauge | 22–24 AWG |
| Contact Plating Thickness | 1.27 µm |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz (contact-to-contact) |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering Support | IEEE 802.3bt Type 4 Compliant |
| PoE Support | Up to 90W (IEEE 802.3bt Type 4) |
| PoE Durability | >3000 plug-to-jack mating cycles |
Material Specifications
| Specification | Details |
|---|---|
| Housing Material | PC + ABS |
| Contact Base Material | Copper-Nickel Alloy |
| Contact Plating Material | Gold |
| IDC Termination Material | Copper-Aluminum Alloy |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 100 N |
| Mating Cycle Compliance | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
- RoHS Compliant
- UK RoHS Compliant
- REACH SVHC Compliant
- China RoHS Compliant
- ISO 9001:2015 Quality Management Certified
- cULus Safety Certified
Key Features
- Category 6 performance for high-speed network connectivity
- Supports Gigabit Ethernet applications
- Compatible with both solid and stranded conductors
- Gold-plated contacts for reliable signal transmission
- Supports IEEE 802.3bt Type 4 PoE up to 90W
- Compatible with T568A and T568B wiring standards
- Fits M Series faceplates and patch panels
- Durable design with over 3,000 PoE mating cycles
- UL 94 V-0 flame-retardant housing
- RoHS, REACH, and ISO compliant for quality and environmental standards
