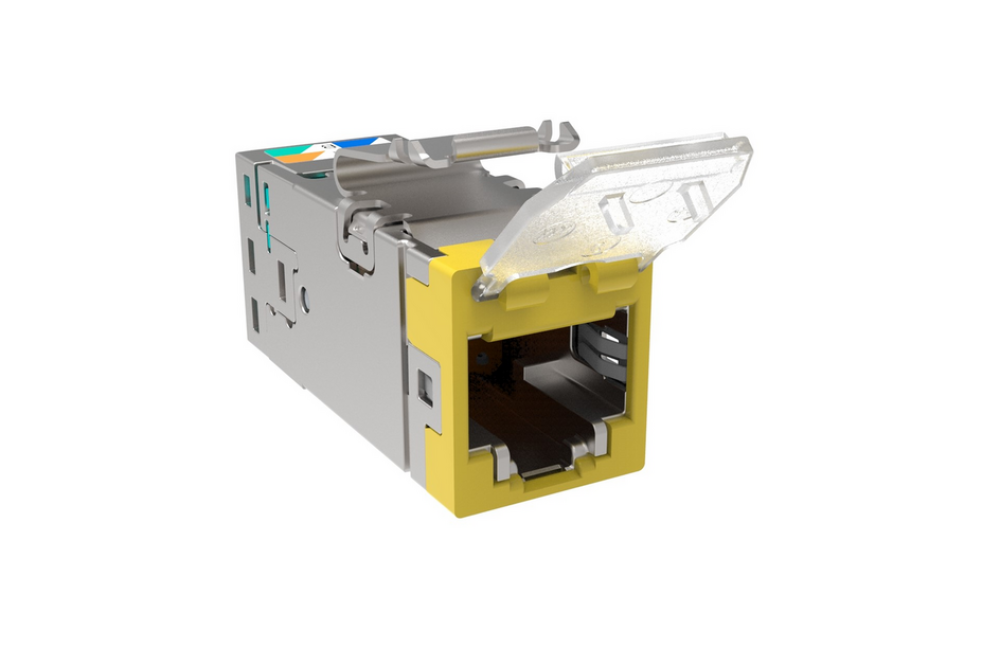

CommScope 2153365-8 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, Yellow, 4-Pair
SKU: 2153365-8
Category: Networking Products
Availability: 10000
Tag: commscope cat6a jack rj45 modular jack cat6a shielded jack commscope slx series slx rj45 jack shielded keystone jack yellow rj45 jack yellow cat6a jack 4 pair modular jack rj45 network connector lan keystone jack ethernet jack cat6a structured cabling network infrastructure shielded network jack idc termination jack t568a t568b compatible poe ready jack high speed ethernet jack cat6a keystone module data networking jack commscope netconnect dust cover rj45 jack industrial network connector enterprise cabling solution 10 gigabit ethernet jack shielded lan connector rj45 female jack network faceplate jack yellow network module commscope 2153365-8 slx-dc-6as-yl cat6a shielded modular jack yellow rj45 jack yellow keystone jack yellow network outlet yellow ethernet connector yellow data jack yellow shielded rj45 yellow cat6a keystone yellow lan jack yellow structured cabling jack yellow modular network jack
Quantity:
Description
The CommScope 2153365-8 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover (Yellow) is a high-performance networking solution designed for enterprise, commercial, and data center structured cabling installations. Engineered to support Category 6A performance standards, this shielded modular jack delivers reliable high-speed data transmission while minimizing electromagnetic interference (EMI) and crosstalk.
Featuring a durable hinged integrated dust cover, the jack protects contacts from dust and contaminants, ensuring long-term network reliability. It supports both solid and stranded conductors and is compatible with 22–26 AWG cables, making installation flexible and efficient. The jack terminates using IDC technology and is designed for use with CommScope SL Series faceplates and panels.
Built to meet ANSI/TIA-568-C.2 and ISO/IEC 11801 Class EA standards, the SLX Series modular jack fully supports IEEE 802.3bt Type 4 PoE applications up to 90W, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices. Gold-plated contacts, robust shielding, and superior mechanical durability ensure consistent performance even in demanding network environments.
Key Features- Category 6A shielded RJ45 modular jack for high-speed network connectivity
- Integrated hinged dust cover for enhanced port protection
- Supports both solid and stranded conductors (22–26 AWG)
- Compatible with CommScope SL Series faceplates and panels
- Supports T568A and T568B wiring schemes
- Fully supports IEEE 802.3bt Type 4 PoE (up to 90W)
- Gold-plated contacts for reliable signal transmission
- IDC termination for secure cable connections
- Designed for enterprise, commercial, and data center applications
- Yellow color for easy network identification and cable management
Product Specifications
Brand: Commscope
Model Number: 2153365-8
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Brand | CommScope |
| Model Number | 2153365-8 |
| Product Series | SLX Series |
| Product Type | RJ45 Modular Jack |
| Portfolio | NETCONNECT® |
| Category | Cat6A |
| Shielding | Shielded |
| Color | Yellow |
| Port Type | RJ45 |
| Integrated Dust Cover | Hinged |
| Cable Type | Shielded |
| Conductor Type | Solid and Stranded |
| Compatible Conductor Gauge | 22–26 AWG (Solid), 22–26 AWG (Stranded) |
| Maximum Cable Diameter | 8.5 mm |
| Maximum Insulated Conductor Diameter | 1.6 mm |
| Termination Type | IDC |
| Termination Tool | JTT Termination Tool |
| Wiring Schemes | T568A, T568B |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Transmission Standards | ANSI/TIA-568-C.2, ISO/IEC 11801 Class EA |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| PoE Durability | Over 3000 plug-to-jack mating cycles |
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
| Contact Plating Thickness | 1.27 µm |
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Insulation Resistance | Minimum 500 MΩ |
| Dielectric Withstand Voltage (Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Safety Voltage Rating | 150 Vac |
| Minimum Plug Retention Force | 50 N |
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
| Packaging Quantity | 24 Pieces |
| Packaging Type | Bag / Box |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
| Compliance Certifications | RoHS, UK-RoHS, China RoHS, REACH-SVHC, RCM Compliant |
