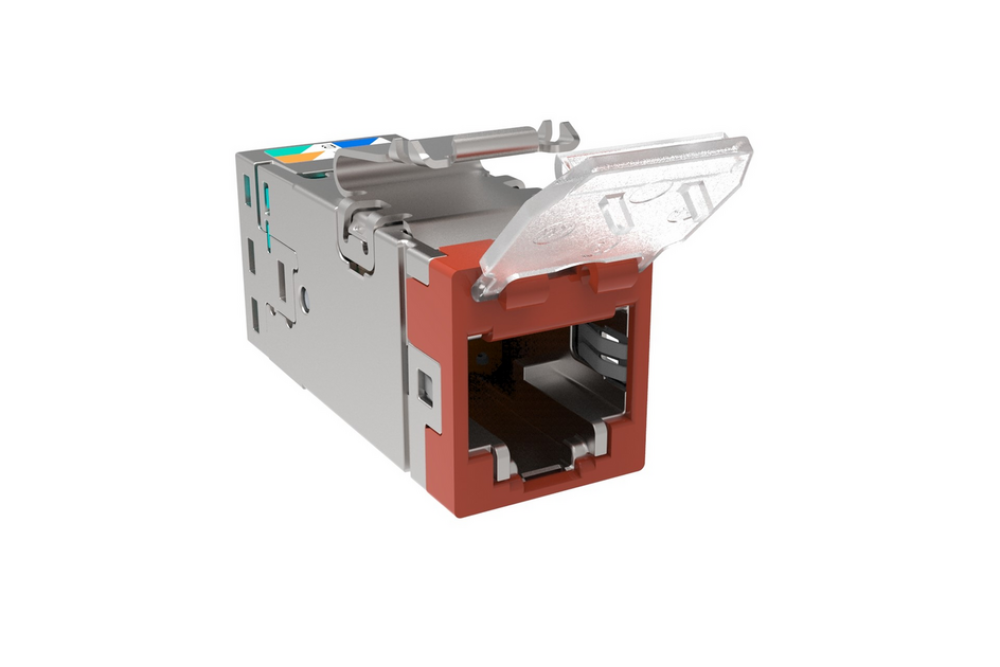

CommScope 2153365-7 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, Orange, 4-Pair
SKU: 2153365-7
Category: Networking Products
Availability: 10000
Tag: commscope cat6a jack commscope rj45 modular jack commscope 2153365-7 slx series rj45 jack cat6a shielded jack rj45 keystone jack shielded network jack orange rj45 jack orange cat6a keystone 4 pair rj45 jack lan modular jack ethernet network connector idc termination jack structured cabling solution commscope netconnect cat6a data jack rj45 female connector poe compatible jack 10 gigabit ethernet jack slx shielded modular jack network faceplate jack copper network connectivity enterprise network cabling high speed data connector dust cover rj45 jack orange network outlet cat6a lan connector telecom rj45 jack data networking hardware professional cabling components
Quantity:
Description
The CommScope 2153365-7 SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance network connectivity solution designed for demanding enterprise and structured cabling environments. Engineered to support Category 6A performance standards, this shielded modular jack ensures reliable high-speed data transmission while minimizing electromagnetic interference (EMI) and crosstalk.
Featuring a durable integrated hinged dust cover, the jack helps protect contacts from dust and contaminants when not in use, enhancing long-term reliability. It supports both solid and stranded conductors and is compatible with SL Series faceplates and panels for seamless installation. Designed for modern PoE applications, it fully supports IEEE 802.3bt Type 4 (90W) Power over Ethernet, making it ideal for IP cameras, wireless access points, VoIP phones, and other network-powered devices.
The robust construction, gold-plated contacts, and compliance with ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards make this modular jack an excellent choice for high-density network deployments requiring superior performance and durability.
Key Features- Category 6A shielded RJ45 modular jack for high-speed network applications
- Integrated hinged dust cover for enhanced port protection
- Supports both T568A and T568B wiring schemes
- Compatible with solid and stranded conductors
- Designed for use with CommScope SL Series faceplates and panels
- Supports IEEE 802.3bt Type 4 PoE applications up to 90W
- Gold-plated contacts for superior conductivity and corrosion resistance
- IDC termination using CommScope JTT Termination Tool
- Excellent EMI protection through shielded design
- Suitable for enterprise, data center, and commercial network installations
Product Specifications
Brand: Commscope
Model Number: 2153365-7
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Brand | CommScope |
| Model Number | 2153365-7 |
| Series | SLX Series |
| Product Type | RJ45 Modular Jack |
| Portfolio | NETCONNECT® |
| Color | Orange |
| Category | Cat6A |
| Cable Type | Shielded |
| Conductor Type | Solid & Stranded |
| Dust Cover | Integrated Hinged Dust Cover |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | JTT Termination Tool |
| Wiring Schemes | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
| Maximum Cable Diameter | 8.5 mm |
| Maximum Insulated Conductor Diameter | 1.6 mm |
| Solid Conductor Gauge | 22–26 AWG |
| Stranded Conductor Gauge | 24–26 AWG |
| Contact Plating Thickness | 1.27 µm |
| Contact Resistance | ≤ 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage (Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Insulation Resistance | ≥ 500 MΩ |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| PoE Durability | Over 3000 plug-to-jack mating cycles |
| Safety Voltage Rating | 150 Vac |
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
| Plug Retention Force | 90 N (IEC 60603-7 Compliant) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Dimensions
| Dimension | Value |
|---|---|
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
Compliance & Certifications
- RoHS Compliant
- UK RoHS Compliant
- REACH SVHC Compliant
- China RoHS Compliant
- RCM Certified
- cULus Safety Certified
Regional Availability
- Asia
- Australia & New Zealand
- Europe, Middle East & Africa (EMEA)
- Latin America
