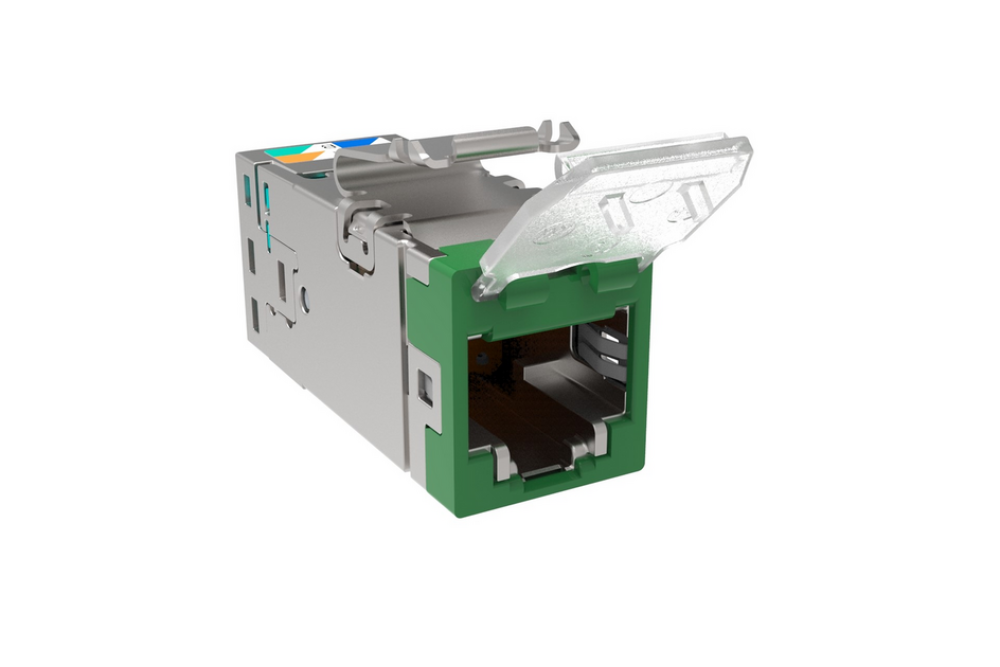

CommScope 2153365-6 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, Green, 4-Pair
SKU: 2153365-6
Category: Networking Products
Availability: 10000
Tag: commscope cat6a jack commscope rj45 modular jack commscope 2153365-6 slx series rj45 jack cat6a shielded jack rj45 shielded keystone jack green rj45 jack green cat6a keystone 4 pair modular jack rj45 network connector lan keystone jack ethernet modular jack cat6a network outlet shielded network jack commscope slx jack rj45 dust cover jack structured cabling solutions enterprise network connectivity high speed ethernet jack tia 568.2-d compliant idc termination jack poe compatible jack 10 gigabit ethernet jack network faceplate jack data networking components copper network cabling lan infrastructure products rj45 female connector cat6a shielded outlet commscope network accessories green network keystone slx series cat6a outlet professional cabling solutions data center connectivity commercial network cabling
Quantity:
Description
The CommScope 2153365-6 SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance network connectivity solution designed for enterprise, commercial, and structured cabling installations. Engineered to support Category 6A network standards, this shielded modular jack delivers reliable high-speed data transmission while minimizing electromagnetic interference (EMI) and crosstalk.
Featuring a hinged integrated dust cover, the jack helps protect contacts from dust and contaminants when not in use, ensuring long-term performance and durability. Compatible with both solid and stranded conductors, it supports T568A and T568B wiring schemes and installs easily into CommScope SL Series faceplates and panels using the JTT termination tool.
Designed for modern Power over Ethernet (PoE++) applications, the jack fully supports IEEE 802.3bt Type 4 (90W) remote powering and offers exceptional durability with over 3,000 mating cycles. Its robust construction, premium gold-plated contacts, and compliance with international cabling standards make it an ideal choice for high-density network infrastructures, data centers, and commercial LAN deployments.
Key Features- Category 6A shielded RJ45 modular jack for high-speed Ethernet networks
- Integrated hinged dust cover for enhanced protection
- Supports both solid and stranded conductors
- Compatible with T568A and T568B wiring standards
- Designed for CommScope SL Series faceplates and panels
- IDC termination for secure and reliable connections
- Supports IEEE 802.3bt Type 4 PoE++ (up to 90W)
- Rated for over 3,000 plug-to-jack mating cycles
- Gold-plated contacts for superior conductivity and durability
- Shielded design minimizes EMI and crosstalk
- Compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards
Product Specifications
Brand: Commscope
Model Number: 2153365-6
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Product Name | CommScope 2153365-6 SLX Series RJ45 Modular Jack |
| Product Type | Modular Jack |
| Portfolio | NETCONNECT® |
| Series | SLX Series |
| ANSI/TIA Category | Category 6A |
| Cable Type | Shielded |
| Color | Green |
| Conductor Type | Solid, Stranded |
| Integrated Dust Cover | Hinged |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | JTT Termination Tool |
| Wiring Standards | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
Dimensions
| Specification | Value |
|---|---|
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
| Maximum Cable Diameter | 8.5 mm |
| Maximum Insulated Conductor Diameter | 1.6 mm |
| Contact Plating Thickness | 1.27 µm |
| Solid Conductor Gauge | 22–26 AWG |
| Stranded Conductor Gauge | 24–26 AWG |
Electrical Specifications
| Specification | Value |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage (Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering Support | IEEE 802.3bt Type 4 Compliant |
| PoE Durability | Supports 90W PoE++ applications with over 3,000 mating cycles |
Material Specifications
| Specification | Material |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Value |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycles | Complies with IEC 60603-7 Series |
Environmental Specifications
| Specification | Value |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Value |
|---|---|
| Packaging Quantity | 1 |
| Packaging Type | Bag |
Compliance & Certifications
- RoHS Compliant
- UK RoHS Compliant
- REACH SVHC Compliant
- China RoHS Compliant
- RCM Certified (Electrical Safety & Telecommunications Requirements)
- cULus Safety Certified
Applications
- Enterprise LAN Networks
- Data Centers
- High-Speed Cat6A Structured Cabling Systems
- PoE++ (90W) Network Deployments
- Commercial and Industrial Ethernet Installations
- Shielded Network Infrastructure Environments
