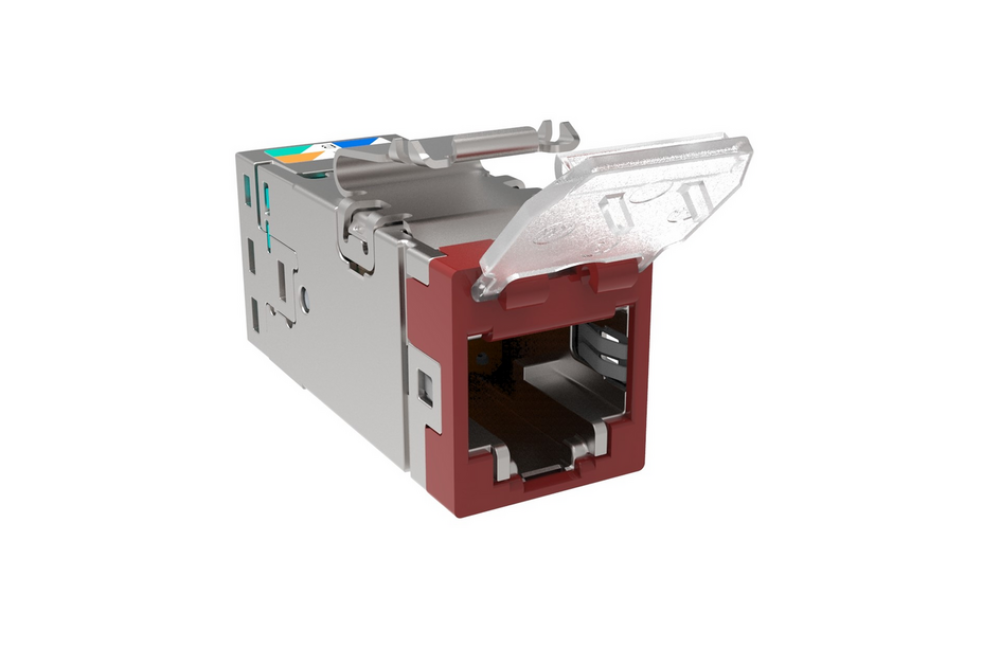

CommScope 2153365-5 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, Red, 4-Pair
SKU: 2153365-5
Category: Networking Products
Availability: 10000
Tag: commscope cat6a jack commscope rj45 jack commscope slx series commscope 2153365-5 cat6a shielded modular jack rj45 keystone jack shielded rj45 connector cat6a network jack 4 pair rj45 jack slx modular jack commscope network outlet ethernet keystone jack lan modular jack structured cabling solution cat6a shielded keystone idc termination jack t568a t568b compatible dust cover rj45 jack high performance network jack poe ready rj45 jack 10 gigabit ethernet jack data networking connector enterprise network jack red rj45 jack red keystone jack red network connector red cat6a jack red lan jack red data outlet network infrastructure component commscope netconnect shielded data jack rj45 wall outlet jack red rj45 jack red cat6a keystone red network jack red shielded jack red modular jack red ethernet connector red data jack red lan connector red keystone outlet red structured cabling component
Quantity:
Description
The CommScope 2153365-5 SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance network connectivity solution designed for demanding enterprise and structured cabling environments. Engineered to meet ANSI/TIA Category 6A and ISO/IEC Class EA standards, this shielded modular jack delivers reliable high-speed data transmission while providing superior protection against electromagnetic interference (EMI) and crosstalk.
Featuring a durable red housing with an integrated hinged dust cover, the jack helps protect contacts from dust and contaminants when not in use. It supports both solid and stranded conductors and is compatible with SL Series faceplates and panels, making installation seamless in commercial and data center applications.
Designed for modern Power over Ethernet (PoE) deployments, the jack fully supports IEEE 802.3bt Type 4 applications up to 90W and exceeds 3,000 mating cycles, ensuring long-term performance and reliability. Its IDC termination design enables secure cable connections using the CommScope JTT Termination Tool, making it an ideal choice for high-density network infrastructures.
Key Features- Category 6A shielded RJ45 modular jack for high-speed networking
- Integrated hinged dust cover for enhanced port protection
- Supports both T568A and T568B wiring schemes
- Compatible with SL Series faceplates and panels
- Supports solid and stranded conductors
- Fully supports IEEE 802.3bt Type 4 PoE applications up to 90W
- Exceeds 3,000 plug-to-jack mating cycles
- Gold-plated contacts for superior conductivity and durability
- Shielded design minimizes EMI and alien crosstalk
- Suitable for enterprise networks, data centers, and commercial installations
Product Specifications
Brand: Commscope
Model Number: 2153365-5
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Product Series | SLX Series |
| Brand | CommScope NETCONNECT® |
| Part Number | 2153365-5 |
| ANSI/TIA Category | Cat6A |
| Cable Type | Shielded |
| Color | Red |
| Conductor Type | Solid and Stranded |
| Integrated Dust Cover | Hinged |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | JTT Termination Tool |
| Wiring Schemes | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
Physical Specifications
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
| Maximum Cable Diameter | 8.5 mm |
| Maximum Insulated Conductor Diameter | 1.6 mm |
| Compatible Solid Conductor Gauge | 22–26 AWG |
| Compatible Stranded Conductor Gauge | 24–26 AWG |
| Contact Plating Thickness | 1.27 µm |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage (Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| Remote Powering | Fully compliant with IEEE 802.3bt and IEC 60512-99-002 |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycle Compliance | IEC 60603-7 Series |
| PoE Durability | Over 3,000 mating cycles |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 |
| Packaging Type | Bag |
Compliance & Certifications
- RoHS Compliant
- UK RoHS Compliant
- REACH SVHC Compliant
- China RoHS Compliant
- RCM Certified
- cULus Safety Certified
Applications
- Enterprise LAN Networks
- Data Centers
- Structured Cabling Systems
- High-Speed Cat6A Ethernet Installations
- PoE and PoE++ Deployments
- Commercial and Industrial Networking Environments
