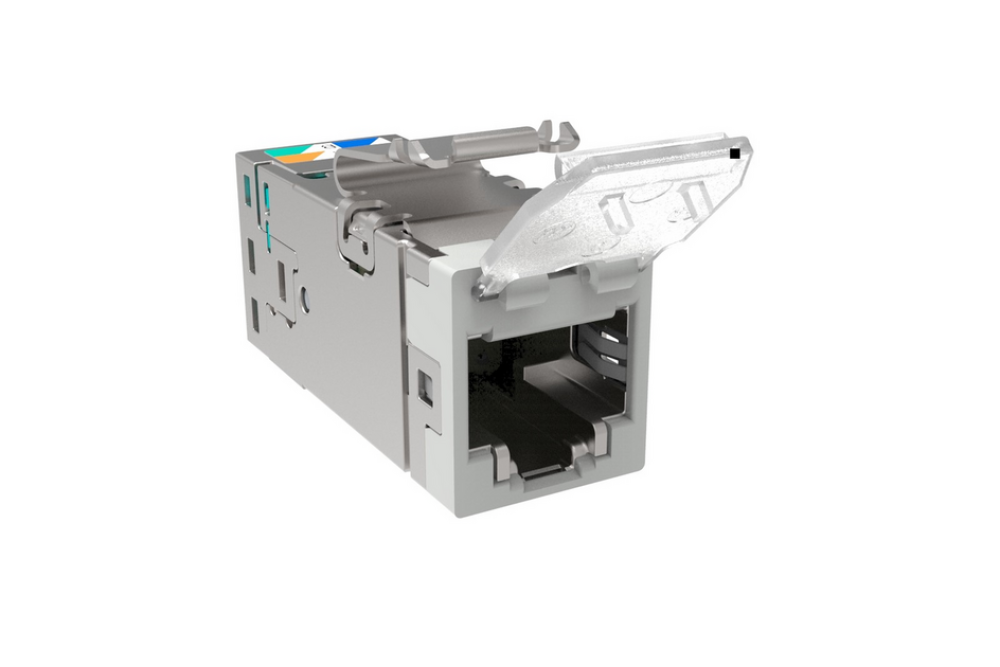

CommScope 2153365-4 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, Grey, 4-Pair
SKU: 2153365-4
Category: Networking Products
Availability: 10000
Tag: commscope cat6a jack commscope rj45 jack commscope slx series jack commscope 2153365-4 slx-dc-6as-gy cat6a shielded modular jack rj45 shielded jack cat6a keystone jack 4 pair rj45 jack network keystone module lan modular jack ethernet jack cat6a shielded network connector idc termination jack sl series outlet jack structured cabling component data network jack poe ready rj45 jack 10 gigabit ethernet jack industrial network jack commscope network solutions grey rj45 jack grey cat6a jack grey shielded keystone jack dust cover rj45 jack hinged dust cover jack cat6a lan outlet enterprise network connectivity high performance rj45 module netconnect slx jack
Quantity:
Description
The CommScope 2153365-4 SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance network connectivity solution designed for enterprise, commercial, and data center cabling applications. Engineered to support Category 6A performance standards, this shielded modular jack delivers reliable high-speed data transmission while minimizing electromagnetic interference (EMI) and crosstalk.
Featuring a durable hinged integrated dust cover, the jack protects internal contacts from dust and contaminants, ensuring long-term network reliability. Compatible with both solid and stranded conductors, it supports flexible installation requirements and terminates quickly using the JTT Termination Tool. The jack is designed for use with SL Series faceplates and panels and supports both T568A and T568B wiring schemes.
Built to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards, the SLX Series jack is fully compliant with modern network infrastructure requirements. It also supports IEEE 802.3bt Type 4 PoE (up to 90W), making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones over Ethernet cabling.
Key Features- Category 6A shielded RJ45 modular jack
- Integrated hinged dust cover for added protection
- Supports high-speed 10 Gigabit Ethernet networks
- Compatible with solid and stranded conductors
- Supports T568A and T568B wiring configurations
- Designed for SL Series faceplates and panels
- IDC termination using the JTT Termination Tool
- Fully supports IEEE 802.3bt Type 4 PoE (90W)
- Enhanced EMI and crosstalk protection with shielded design
- Durable construction with gold-plated contacts
- Suitable for enterprise, commercial, and data center installations
- Grey color for easy network identification
Product Specifications
Brand: Commscope
Model Number: 2153365-4
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Manufacturer | CommScope |
| Part Number | 2153365-4 |
| Product Series | SLX Series |
| Product Type | Modular Jack |
| Portfolio | NETCONNECT® |
| Color | Grey |
| ANSI/TIA Category | Category 6A |
| Cable Type | Shielded |
| Conductor Type | Solid, Stranded |
| Termination Type | IDC |
| Termination Tool | JTT Termination Tool |
| Wiring Scheme | T568A, T568B |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Integrated Dust Cover | Hinged |
Transmission Standards
| Specification | Details |
|---|---|
| ANSI/TIA Standard | ANSI/TIA-568.2-D |
| ISO/IEC Standard | ISO/IEC 11801 Class EA |
Physical Specifications
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
| Maximum Cable Diameter | 8.5 mm |
| Maximum Insulated Conductor Diameter | 1.6 mm |
| Contact Plating Thickness | 1.27 µm |
| Solid Conductor Gauge | 22–26 AWG |
| Stranded Conductor Gauge | 24–26 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage (Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| PoE Durability | >3000 plug-to-jack mating cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycles | Complies with IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95%, Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Certification | cULus |
Compliance & Certifications
- RoHS Compliant
- UK RoHS Compliant
- REACH SVHC Compliant
- China RoHS Compliant
- RCM Compliant
- Supports IEEE 802.3bt Type 4 Remote Powering
- Complies with IEC 60512-99-002 unmating under electrical load requirements
