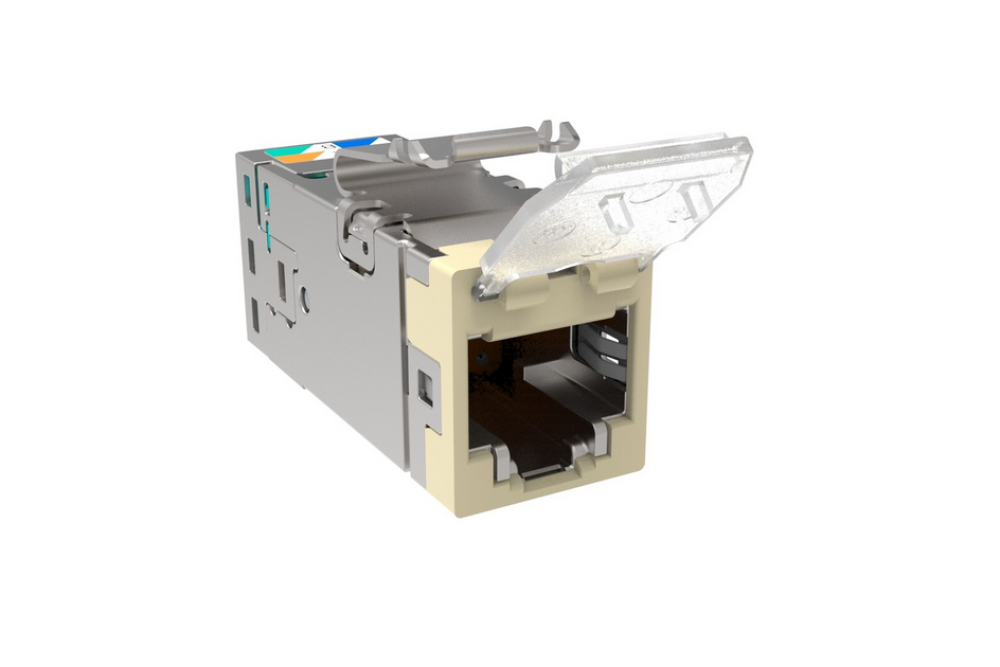

CommScope 2153365-1 SLX Series RJ45 Cat6A Shielded Modular Jack with Dust Cover, Light almond, 4-Pair
SKU: 2153365-1
Category: Networking Products
Availability: 10000
Tag: commscope rj45 jack commscope cat6a jack commscope slx series jack commscope 2153365-1 slx-dc-6as-l.al rj45 modular jack cat6a shielded jack shielded keystone jack rj45 network jack 4 pair rj45 jack ethernet keystone jack lan socket cat6a network outlet jack structured cabling jack idc termination jack poe compatible rj45 jack tia 568.2-d compliant jack iso iec 11801 class ea jack shielded network connector dust cover rj45 jack hinged dust cover jack light almond rj45 jack light almond keystone jack light almond network outlet light almond data jack commscope networking products enterprise network jack high performance cat6a jack cat6a ethernet connector shielded lan jack commercial network infrastructure
Quantity:
Description
The CommScope 2153365-1 SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance networking solution designed for reliable and efficient data transmission in structured cabling systems. Engineered to meet Category 6A standards, this shielded modular jack supports high-speed Ethernet applications and delivers superior protection against electromagnetic interference (EMI) and crosstalk.
Featuring an integrated hinged dust cover, the jack helps protect contacts from dust and contaminants when not in use, enhancing long-term performance and durability. Compatible with both solid and stranded conductors, it offers flexible installation options and supports T568A and T568B wiring schemes. The SLX Series jack is designed for use with SL Series faceplates and panels, making it ideal for enterprise networks, data centers, commercial buildings, and high-density cabling environments.
The jack fully supports IEEE 802.3bt Type 4 Power over Ethernet (PoE++) applications up to 90W, ensuring safe and reliable power delivery for modern network devices such as wireless access points, IP cameras, and IoT equipment. Constructed with premium materials including gold-plated contacts and robust shielded housing, it delivers exceptional connectivity, durability, and long-term network performance.
Key Features- Category 6A shielded RJ45 modular jack for high-speed network connectivity
- Integrated hinged dust cover for protection against dust and debris
- Supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards
- Compatible with both solid and stranded conductors
- Supports T568A and T568B wiring configurations
- Fully supports IEEE 802.3bt Type 4 (90W) PoE++ applications
- Gold-plated contacts for superior conductivity and reliability
- Designed for use with CommScope SL Series faceplates and panels
- Excellent resistance to EMI and crosstalk
- Suitable for enterprise, commercial, and data center installations
Product Specifications
Brand: Commscope
Model Number: 2153365-1
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Product Name | CommScope 2153365-1 SLX Series RJ45 Cat6A Shielded Modular Jack |
| Brand | CommScope |
| Product Series | SLX Series |
| Product Type | Modular Jack |
| Portfolio | NETCONNECT® |
| ANSI/TIA Category | Category 6A |
| Cable Type | Shielded |
| Color | Light Almond |
| Conductor Type | Solid and Stranded |
| Integrated Dust Cover | Hinged |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Termination Tool | JTT Termination Tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
| Wiring Schemes | T568A, T568B |
| Maximum Cable Diameter | 8.5 mm |
| Maximum Insulated Conductor Diameter | 1.6 mm |
| Solid Conductor Gauge | 22–26 AWG |
| Stranded Conductor Gauge | 24–26 AWG |
| Contact Plating Thickness | 1.27 µm |
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
| Contact Resistance (Max.) | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage (Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Insulation Resistance (Min.) | 500 MΩ |
| Remote Powering Support | IEEE 802.3bt Type 4 Compliant |
| PoE Durability | Supports 90W PoE++ applications with over 3000 mating cycles |
| Safety Voltage Rating | 150 Vac |
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
| Plug Retention Force | 90 N |
| Mating Cycles | IEC 60603-7 Compliant |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
| RoHS Compliance | Yes |
| UK RoHS Compliance | Yes |
| REACH-SVHC Compliance | Compliant |
| China RoHS | Below Maximum Concentration Value |
| RCM Compliance | Compliant |
Applications
- Cat6A Structured Cabling Networks
- Enterprise LAN Infrastructure
- Data Centers
- PoE and PoE++ Deployments
- IP Surveillance Systems
- Wireless Access Points
- Commercial and Industrial Network Installations
- High-Speed Ethernet Connectivity up to 10 Gigabit Networks
