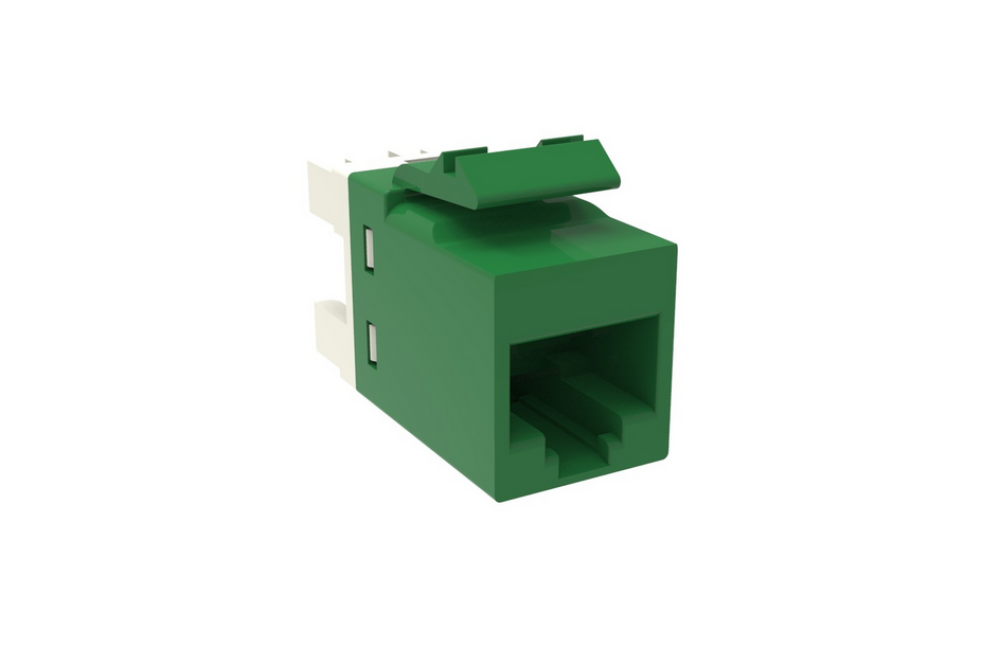

CommScope 1375055-9 SL110-6-GN Cat6 RJ45 Modular Jack Unshielded Keystone Jack Green
SKU: 1375055-9
Category: Networking Products
Availability: 10000
Tag: commscope cat6 jack commscope rj45 keystone jack sl110-6-gn 1375055-9 cat6 modular jack rj45 modular jack unshielded keystone jack green keystone jack cat6 network jack ethernet keystone jack idc termination jack lan cable jack network connectivity solution cat6 utp jack structured cabling component rj45 female connector patch panel compatible jack faceplate compatible keystone t568a t568b wiring gigabit ethernet jack netconnect modular jack commscope netconnect cat6 data jack network wall jack utp rj45 connector telecom keystone jack commercial networking hardware enterprise network accessories cat6 cabling solution green rj45 jack
Quantity:
Description
The CommScope NETCONNECT® SL Series Category 6 Modular Jack is a high-performance unshielded RJ45 connectivity solution designed for reliable network installations in commercial and enterprise environments. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, this Cat6 modular jack supports high-speed data transmission while ensuring consistent network performance. Its green color coding simplifies network identification and cable management.
Compatible with both solid and stranded conductors, the jack features IDC termination and supports T568A and T568B wiring schemes for flexible installation. Designed for use with SL Series faceplates and panels, it offers excellent durability with support for over 3,000 plug-to-jack mating cycles and full IEEE 802.3bt Type 4 PoE (90W) applications. Gold-plated contacts and robust construction ensure reliable connectivity, low contact resistance, and long service life in demanding networking environments.
Product Specifications
Brand: Commscope
Model Number: 1375055-9
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Product Series | SL Series |
| Portfolio | NETCONNECT® |
| ANSI/TIA Category | Category 6 |
| Cable Type | Unshielded |
| Color | Green |
| Conductor Type | Solid, Stranded |
| Mounting | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Wiring Configuration | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Integrated Dust Cover | None |
| Minimum Terminations | 20 Punchdowns |
| Termination Tools | 110 Punchdown Tool, JTT Termination Tool |
Regional Availability
| Region |
|---|
| Asia |
| Australia/New Zealand |
| EMEA |
| Latin America |
Dimensions
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Compatible Solid Conductor Gauge | 22–24 AWG |
| Compatible Stranded Conductor Gauge | 24–26 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Contact Resistance (Max) | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Insulation Resistance (Min) | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering | Supports IEEE 802.3bt Type 4 PoE |
| PoE Durability | Supports 90W PoE applications with over 3,000 mating cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | PC + ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycle Compliance | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95%, Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 |
| Packaging Type | Bag |
Compliance & Certifications
| Certification | Status |
|---|---|
| China RoHS | Below Maximum Concentration Value |
| RCM | Compliant |
| REACH-SVHC | Compliant |
| RoHS | Compliant |
| UK RoHS | Compliant |
Key Features
- Category 6 unshielded modular jack for high-speed Ethernet networks.
- Compatible with both solid and stranded conductors.
- Supports T568A and T568B wiring standards.
- Gold-plated contacts for reliable signal transmission.
- Fully supports IEEE 802.3bt Type 4 PoE (up to 90W).
- Designed for use with CommScope SL Series faceplates and panels.
- Durable construction with over 3,000 mating cycles.
- UL 94 V-0 flame-retardant housing.
- RoHS, REACH, RCM, and cULus compliant.
