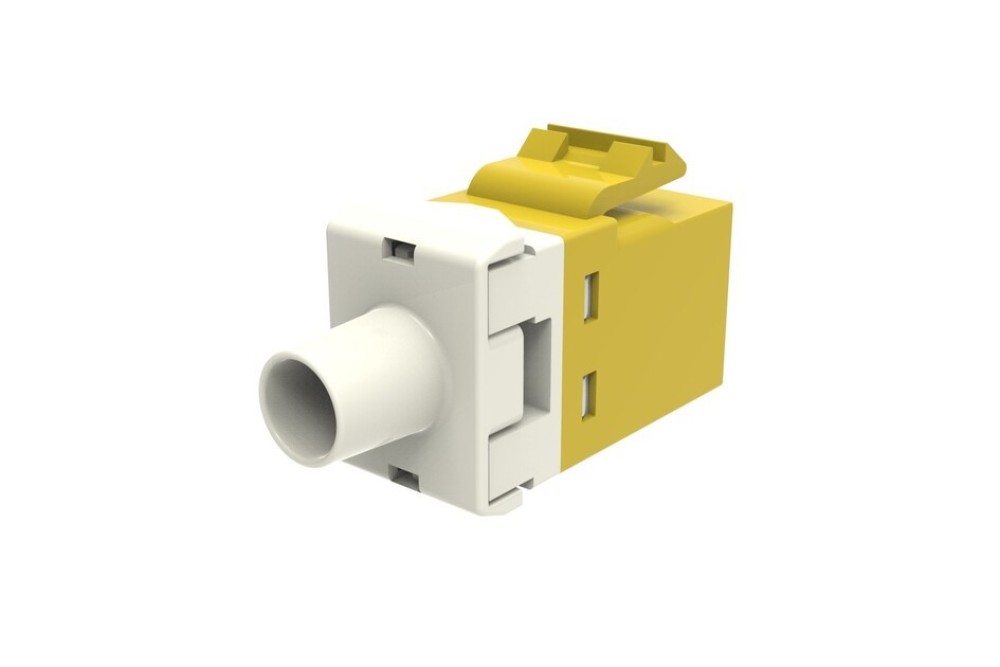

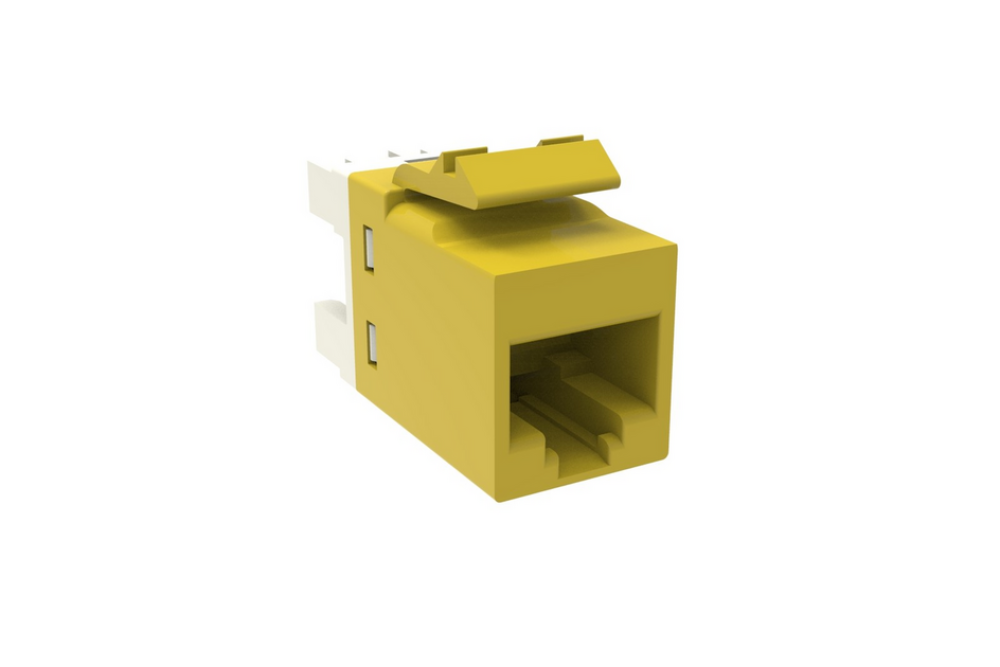

CommScope 1375055-8 SL110-6-YL Cat6 RJ45 Unshielded Modular Jack, Yellow, SL Series
SKU: 1375055-8
Category: Networking Products
Availability: 10000
Tag: commscope cat6 jack commscope rj45 modular jack sl110-6-yl 1375055-8 cat6 keystone jack rj45 network jack unshielded modular jack utp rj45 jack cat6 ethernet jack lan socket cat6 network connectivity module idc punch down jack t568a t568b compatible structured cabling solution commscope netconnect sl series jack yellow rj45 jack ethernet wall plate jack cat6 data jack network faceplate jack patch panel jack gigabit ethernet connector telecom network jack copper network connector high performance cat6 jack enterprise networking accessories lan cabling accessories rj45 female connector network installation hardware cat6 utp connector
Quantity:
Description
The NETCONNECT® SL Series Category 6 Modular Jack is a high-performance unshielded networking connector designed for reliable Gigabit Ethernet and structured cabling installations. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, this modular jack delivers consistent network performance for voice, data, and Power over Ethernet (PoE) applications.
Featuring IDC termination and compatibility with both solid and stranded conductors, the jack supports T568A and T568B wiring schemes for flexible deployment. Its durable construction includes gold-plated beryllium copper contacts and phosphor bronze IDC terminals, ensuring excellent conductivity, long-term reliability, and superior signal integrity.
The jack is optimized for use with SL Series faceplates and panels and fully supports IEEE 802.3bt Type 4 PoE applications up to 90W. With a robust design capable of over 3,000 plug-to-jack mating cycles, it is ideal for enterprise networks, commercial buildings, data centers, and telecommunications infrastructure.
Key Features- Category 6 performance for high-speed data transmission.
- Supports Gigabit Ethernet and PoE++ (IEEE 802.3bt Type 4, up to 90W).
- Compatible with both solid and stranded conductors.
- Supports T568A and T568B wiring configurations.
- Gold-plated contacts for superior conductivity and durability.
- IDC termination compatible with 110 Punchdown and JTT Termination tools.
- Designed for installation in SL Series faceplates and panels.
- Supports more than 3,000 mating cycles for long service life.
- UL 94 V-0 flame-retardant housing for enhanced safety.
- Compliant with RoHS, REACH, RCM, UK-RoHS, and China RoHS standards.
Product Specifications
Brand: Commscope
Model Number: 1375055-8
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Series | SL Series |
| Portfolio | NETCONNECT® |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
| ANSI/TIA Category | Category 6 |
| Cable Type | Unshielded |
| Color | Yellow |
| Conductor Type | Solid and Stranded |
| Mounting | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool, JTT Termination Tool |
| Minimum Terminations | 20 Punchdowns |
| Wiring Configuration | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
Dimensions
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Solid Conductor Gauge | 22–24 AWG |
| Stranded Conductor Gauge | 26–22 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering Support | IEEE 802.3bt Type 4 Compliant |
| PoE Durability | Supports 90W PoE applications with over 3,000 mating cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | PC + ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Minimum Plug Retention Force | 50 N |
| Mating Cycle Standard | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95%, Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging
| Specification | Details |
|---|---|
| Packaging Quantity | 1 |
| Packaging Type | Bag |
Compliance & Certifications
| Certification | Status |
|---|---|
| RoHS | Compliant |
| UK RoHS | Compliant |
| REACH SVHC | Compliant |
| RCM | Compliant |
| China RoHS | Below Maximum Concentration Value |
