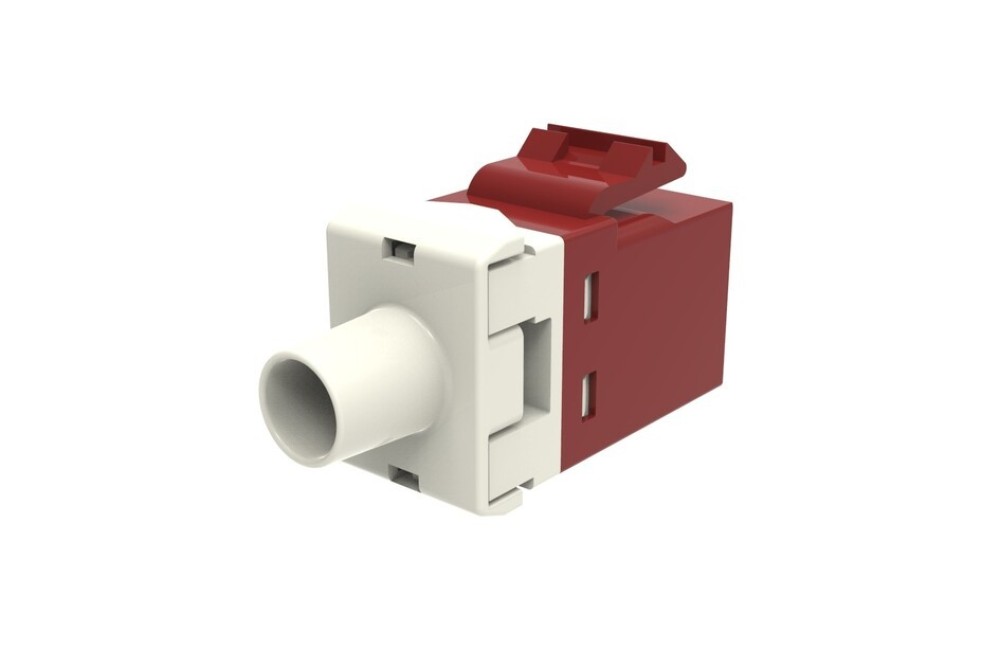

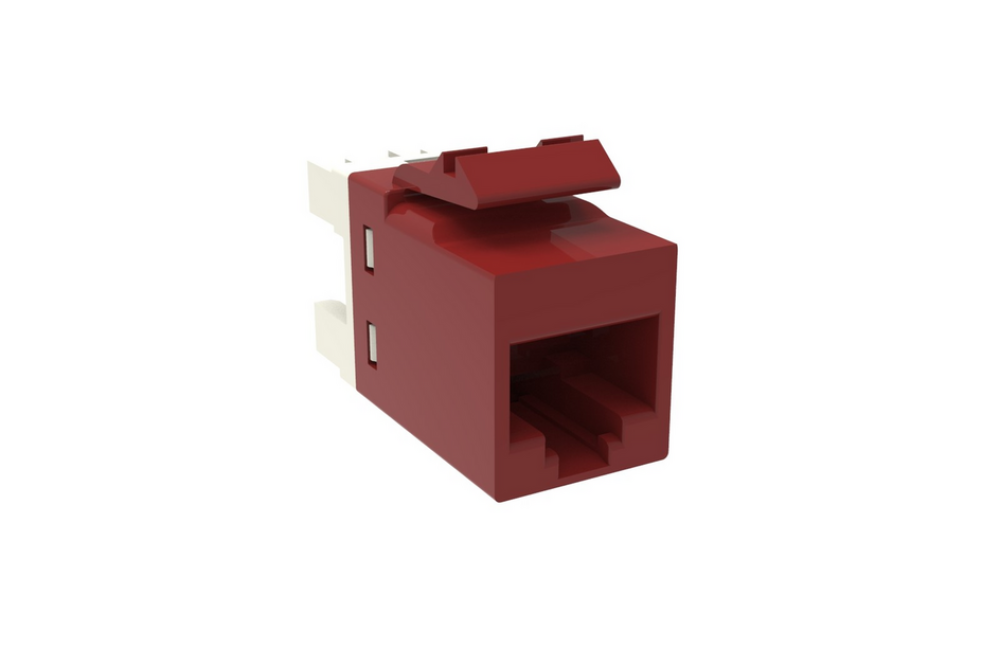

CommScope 1375055-7 SL110-6-RD Cat6 RJ45 Modular Jack Unshielded Keystone Jack Dark Red
SKU: 1375055-7
Category: Networking Products
Availability: 10000
Tag: commscope cat6 jack commscope keystone jack rj45 modular jack cat6 keystone jack unshielded rj45 jack sl110-6-rd 1375055-7 commscope 1375055-7 cat6 network jack ethernet keystone jack rj45 female connector idc termination jack lan keystone module structured cabling jack network outlet jack utp keystone jack cat6 rj45 connector commscope netconnect sl series jack dark red keystone jack red rj45 jack t568a t568b compatible punch down keystone jack data networking accessories network cabling components patch panel keystone jack faceplate compatible jack high performance cat6 jack copper network jack enterprise networking solutions
Quantity:
Description
The CommScope NETCONNECT® SL Series Category 6 Modular Jack is a high-performance unshielded RJ45 connectivity solution designed for reliable network installations in commercial and enterprise environments. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, this Cat6 modular jack delivers excellent data transmission performance for Gigabit Ethernet and structured cabling applications.
Featuring IDC termination and compatibility with both solid and stranded conductors, the jack supports T568A and T568B wiring configurations for flexible installation. Its durable construction includes gold-plated beryllium copper contacts and phosphor bronze IDC terminals, ensuring superior conductivity, long-term reliability, and consistent network performance.
The SL Series modular jack is designed for use with CommScope SL Series faceplates and panels and supports advanced Power over Ethernet (PoE) applications, including IEEE 802.3bt Type 4 (90W) deployments. With a robust design capable of more than 3,000 plug-to-jack mating cycles, it is ideal for high-density networking environments where durability and performance are essential.
Product Specifications
Brand: Commscope
Model Number: 1375055-7
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Product Series | SL Series |
| Portfolio | NETCONNECT® |
| Category | Cat6 |
| Cable Type | Unshielded |
| Color | Dark Red |
| Conductor Type | Solid, Stranded |
| Mounting | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool, JTT Termination Tool |
| Minimum Termination Punchdowns | 20 Times |
| Wiring Scheme | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
Physical Specifications
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Compatible Solid Conductor Gauge | 22–24 AWG |
| Compatible Stranded Conductor Gauge | 24–26 AWG |
| Contact Plating Thickness | 1.27 µm |
Electrical Specifications
| Specification | Details |
|---|---|
| Contact Resistance | ≤ 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Insulation Resistance | ≥ 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| Remote Powering | Supports IEEE 802.3bt and IEC 60512-99-002 Requirements |
| PoE Durability | >3000 Plug-to-Jack Mating Cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | PC+ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycle Compliance | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
| Standard | Status |
|---|---|
| RoHS | Compliant |
| UK RoHS | Compliant |
| REACH SVHC | Compliant |
| China RoHS | Below Maximum Concentration Value |
| RCM | Compliant with Electrical Safety & Telecommunications Requirements |
Regional Availability
- Asia
- Australia & New Zealand
- Europe, Middle East & Africa (EMEA)
- Latin America
