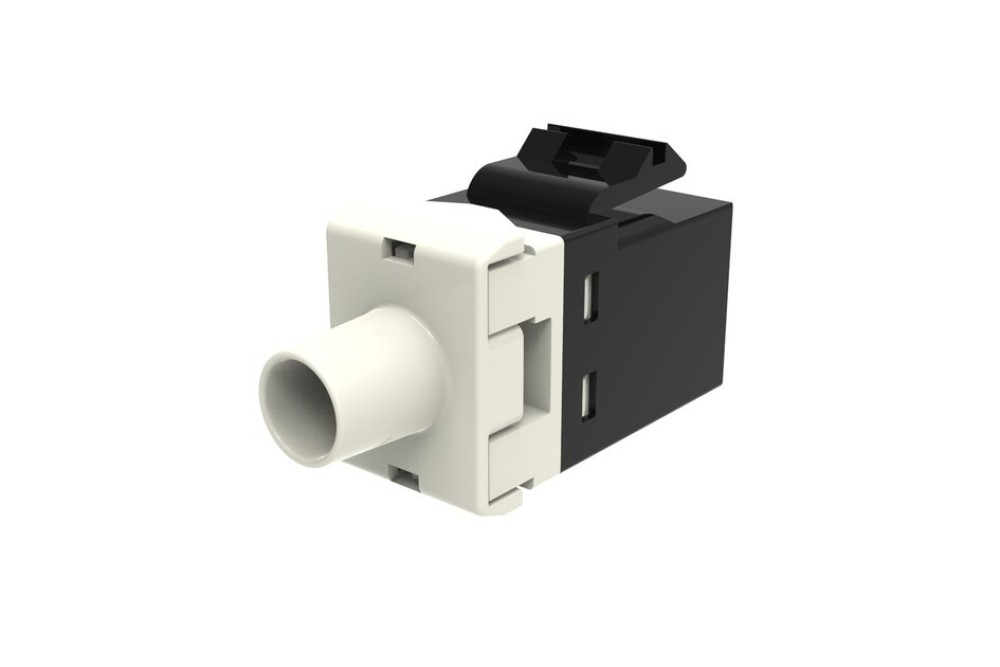

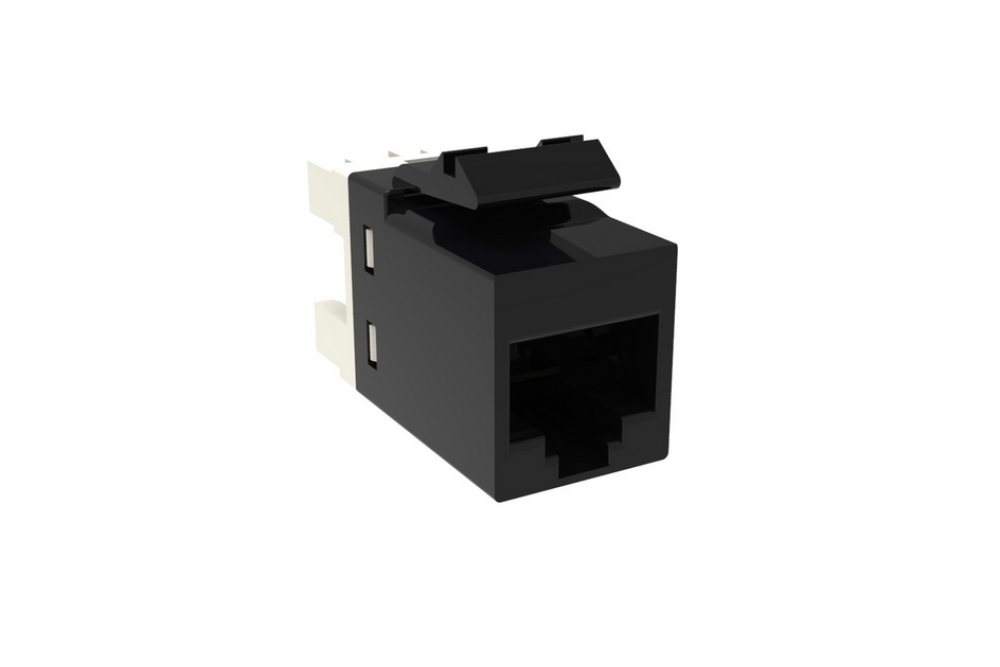

CommScope 1375055-2 SL110-6-BK Cat6 RJ45 Unshielded Modular Jack, Black, SL Series
SKU: 1375055-2
Category: Networking Products
Availability: 10000
Tag: commscope cat6 jack commscope rj45 jack sl110-6-bk 1375055-2 cat6 modular jack rj45 keystone jack unshielded rj45 jack cat6 network jack ethernet wall jack lan modular jack idc termination jack cat6 utp jack network connectivity module structured cabling solution commscope netconnect sl series jack rj45 data jack cat6 faceplate jack t568a t568b compatible 110 punch down jack network installation accessory ethernet cabling component high performance cat6 jack black rj45 jack commercial network jack data communication jack copper network jack cat6 outlet module commscope structured cabling professional networking hardware
Quantity:
Description
The NETCONNECT® SL Series Category 6 Modular Jack is a high-performance networking solution designed for reliable and efficient structured cabling installations. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, this unshielded RJ45 jack delivers excellent network performance for voice, data, and high-speed Ethernet applications. Compatible with both solid and stranded conductors, it offers flexible installation options and supports T568A and T568B wiring schemes.
Built with premium materials including gold-plated beryllium copper contacts and phosphor bronze IDC terminations, the jack ensures superior conductivity, durability, and long-term reliability. The compact design allows seamless mounting into SL Series faceplates and panels, making it ideal for commercial, enterprise, and residential network deployments.
The jack fully supports IEEE 802.3bt Type 4 Power over Ethernet (PoE++) applications up to 90W, ensuring safe power delivery over LAN cabling while maintaining excellent performance. Designed for demanding environments, it offers robust plug retention, multiple termination cycles, and compliance with international safety and environmental standards.
Key Features- Category 6 performance for high-speed data transmission
- Unshielded modular jack compatible with SL Series faceplates and panels
- Supports both solid and stranded conductors
- T568A and T568B wiring compatibility
- Gold-plated contacts for enhanced conductivity and durability
- Supports IEEE 802.3bt Type 4 (90W) PoE applications
- IDC termination for secure and reliable cable connections
- Compatible with 110 Punchdown and JTT Termination tools
- UL 94 V-0 flame-retardant material construction
- Compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards
- Suitable for enterprise, commercial, and residential networking installations
Product Specifications
Brand: Commscope
Model Number: 1375055-2
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Series | SL Series |
| Portfolio | NETCONNECT® |
| Category | Cat6 |
| Cable Type | Unshielded |
| Color | Black |
| Conductor Type | Solid / Stranded |
| Wiring Standards | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Mounting | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool, JTT Termination Tool |
| Minimum Terminations | 20 Punchdowns |
| Compatible Cable Diameter | Up to 5.8 mm |
| Compatible Insulated Conductor Diameter | Up to 1.45 mm |
| Solid Conductor Gauge | 22–24 AWG |
| Stranded Conductor Gauge | 24–26 AWG |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Contact Plating Thickness | 1.27 µm |
| IDC Material | Phosphor Bronze |
| Termination Contact Plating | Tin |
| Housing Material | PC+ABS |
| Contact Resistance | Maximum 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Insulation Resistance | Minimum 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| PoE Durability | >3000 Plug-to-Jack Mating Cycles |
| Plug Retention Force | 90 N |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Certification | cULus |
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
- RoHS Compliant
- UK RoHS Compliant
- REACH SVHC Compliant
- China RoHS Compliant
- RCM Certified
- cULus Safety Certified
Regional Availability
- Asia
- Australia & New Zealand
- Europe, Middle East & Africa (EMEA)
- Latin America
