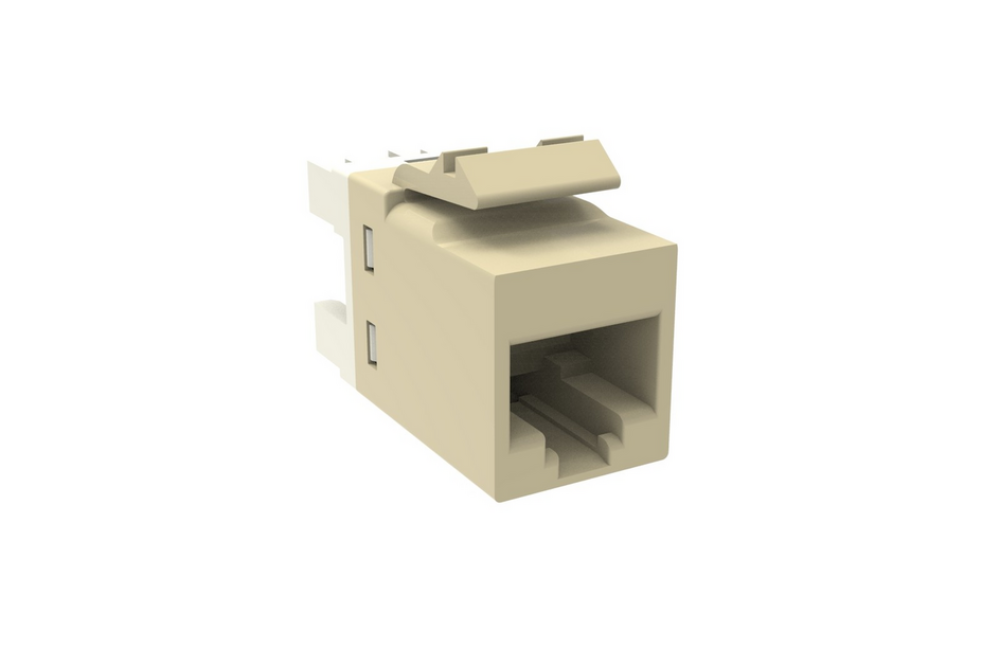

CommScope 1375055-1 SL110-6-WH Cat6 RJ45 Unshielded Modular Jack, White, SL Series
SKU: 1375055-1
Category: Networking Products
Availability: 10000
Tag: commscope cat6 jack rj45 modular jack cat6 keystone jack commscope sl110-6-wh commscope 1375055-1 rj45 network jack unshielded modular jack cat6 lan jack ethernet wall jack network keystone module idc termination jack t568a t568b compatible structured cabling solution commscope sl series cat6 data jack lan socket module network connectivity jack utp rj45 jack patch panel jack faceplate compatible jack poe ready jack high-speed ethernet jack white rj45 jack cat6 networking accessory enterprise network cabling telecom jack module copper network jack gigabit ethernet jack lan infrastructure product professional network installation cat6 jack rj45 jack keystone jack lan jack network jack ethernet jack commscope jack modular jack utp jack data jack commscope 1375055-1 cat6 rj45 jack commscope sl110-6-wh modular jack cat6 unshielded keystone jack rj45 ethernet wall outlet jack commscope sl series cat6 jack cat6 network termination module gigabit ethernet rj45 jack structured cabling cat6 jack poe compatible rj45 jack professional network installation jack
Quantity:
Description
The NETCONNECT® SL Series Category 6 Modular Jack is a high-performance unshielded networking connector designed for reliable data transmission in structured cabling systems. Compatible with both solid and stranded conductors, this modular jack supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, ensuring excellent network performance for Gigabit Ethernet applications. Its durable construction, gold-plated contacts, and IDC termination provide long-lasting connectivity and signal integrity. The jack is fully compatible with PoE and PoE++ (IEEE 802.3bt Type 4) applications, supporting up to 90W power delivery while maintaining superior durability through more than 3,000 mating cycles. Designed for use with SL Series faceplates and panels, it offers easy installation using standard 110 punchdown or JTT termination tools, making it an ideal solution for commercial, enterprise, and residential network deployments.
Key Features- Category 6 unshielded modular jack for high-speed network connectivity.
- Supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class E transmission standards.
- Compatible with both T568A and T568B wiring configurations.
- Supports solid (22–24 AWG) and stranded (24–26 AWG) conductors.
- Gold-plated contacts ensure reliable signal transmission and corrosion resistance.
- Fully supports IEEE 802.3bt Type 4 PoE applications up to 90W.
- Durable design rated for over 3,000 plug-to-jack mating cycles.
- Compatible with SL Series faceplates and patch panels.
- Easy IDC termination using 110 punchdown or JTT termination tools.
- UL 94 V-0 flame-retardant housing for enhanced safety.
- Suitable for commercial, enterprise, and data network installations.
Product Specifications
Brand: Commscope
Model Number: 1375055-1
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
Specification Details Product Type Modular Jack Series SL Series Brand Portfolio NETCONNECT® Category Cat 6 Cable Type Unshielded (UTP) Color Light Almond Wiring Standards T568A, T568B Termination Type IDC Termination Tools 110 Punchdown Tool, JTT Termination Tool Mounting SL Series Faceplates and Panels Compatible Solid Conductors 22–24 AWG Compatible Stranded Conductors 24–26 AWG Maximum Cable Diameter 5.8 mm Maximum Insulated Conductor Diameter 1.45 mm Contact Material Beryllium Copper Contact Plating Gold (1.27 µm) IDC Material Phosphor Bronze Housing Material PC + ABS Termination Contact Plating Tin Contact Resistance ≤ 20 mΩ Insulation Resistance ≥ 500 MΩ Dielectric Withstand Voltage 1000 Vac @ 60 Hz Current Rating 1.5 A @ 20°C Safety Voltage Rating 150 Vac PoE Support IEEE 802.3bt Type 4 (90W) Plug Retention Force 90 N Operating Temperature -10°C to +60°C Storage Temperature -40°C to +70°C Humidity Up to 95% (Non-Condensing) Flammability Rating UL 94 V-0 Safety Certification cULus Dimensions (H × W × D) 16.13 × 14.48 × 30.48 mm Packaging 1 Piece, Bag Packing
| Specification | Details |
|---|---|
| Product Type | Modular Jack |
| Series | SL Series |
| Brand Portfolio | NETCONNECT® |
| Category | Cat 6 |
| Cable Type | Unshielded (UTP) |
| Color | Light Almond |
| Wiring Standards | T568A, T568B |
| Termination Type | IDC |
| Termination Tools | 110 Punchdown Tool, JTT Termination Tool |
| Mounting | SL Series Faceplates and Panels |
| Compatible Solid Conductors | 22–24 AWG |
| Compatible Stranded Conductors | 24–26 AWG |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold (1.27 µm) |
| IDC Material | Phosphor Bronze |
| Housing Material | PC + ABS |
| Termination Contact Plating | Tin |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Current Rating | 1.5 A @ 20°C |
| Safety Voltage Rating | 150 Vac |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| Plug Retention Force | 90 N |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Certification | cULus |
| Dimensions (H × W × D) | 16.13 × 14.48 × 30.48 mm |
| Packaging | 1 Piece, Bag Packing |
Certifications & Compliance
-
RoHS Compliant
-
UK RoHS Compliant
-
REACH SVHC Compliant
-
China RoHS Compliant
-
RCM Certified
-
cULus Safety Certified
